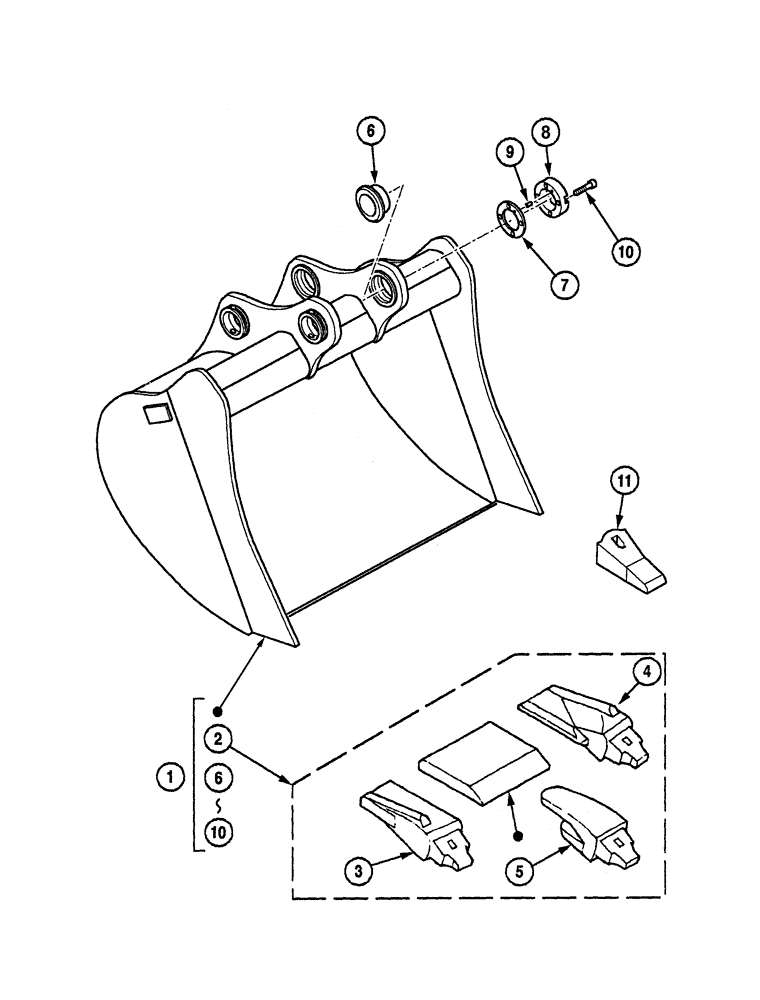

Запчасти Case CX300C (09-310-00[01]) - GENERAL PURPOSE BUCKET (475L - 0.60M) (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

1шт.

See Sales Department, Include(s) 2, 6 - 10

1шт.

2

T3755664

EDGE, CUTTING

1шт.

Include(s) 3, 4, 5

1шт.

3

H1604073

SHANK, BUCKET TOOTH

1шт.

Left

1шт.

4

G1604072

SHANK, BUCKET TOOTH

1шт.

Right

1шт.

5

C704239

SUPPORT

1шт.

6

432393A1

BUSHING

1шт.

7

432390A1

SHIM

0,50 mm

1шт.

7

432391A1

SHIM

1,00 mm

1шт.

8

432392A1

CAP

1шт.

9

432428A1

PIN

1шт.

10

G532916

SCREW,Hex Skt Hd, M16 x 50mm, Cl 10.9

4шт.

11

REF

INSTRUCTION

Tooth

3шт.

See Figure(s) 09-313-00 01

1шт.
