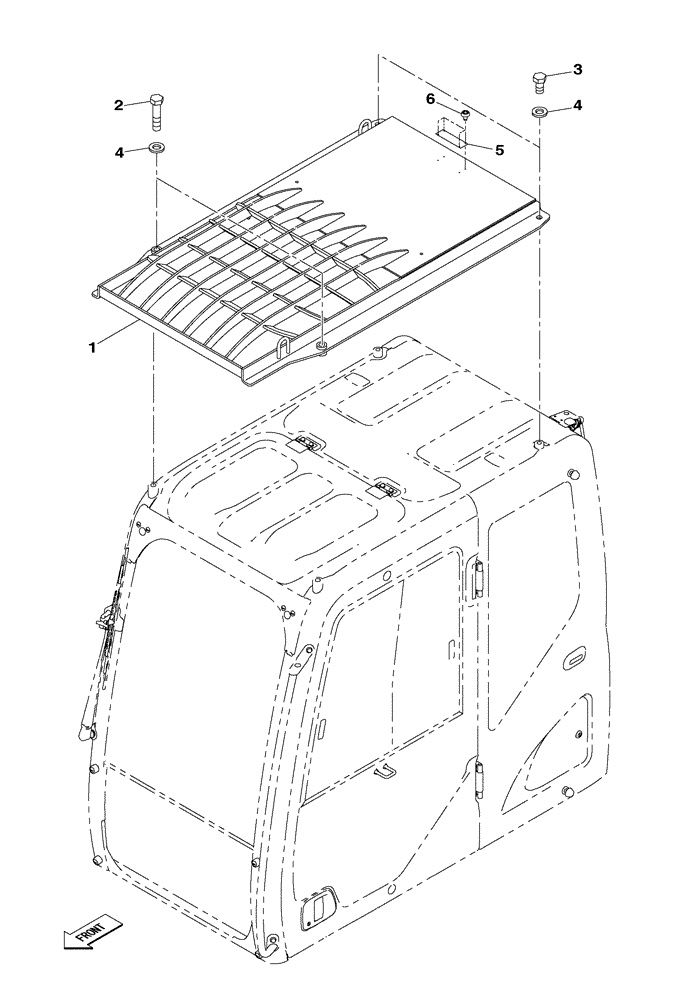

Запчасти Case CX300C (09-043-00[01]) - CAB GUARD (09) - CHASSIS/ATTACHMENTS

1

KHN27691

GUARD

1шт.

2

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

3

827-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

4

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

168438A1

DRIVE SCREW

4шт.
