(09-010-00[01]) - OPERATORS COMPARTMENT - MAT, FLOOR - STANDARD

Запчасти Case CX300C (09-010-00[01]) - OPERATORS COMPARTMENT - MAT, FLOOR - STANDARD (09) - CHASSIS/ATTACHMENTS

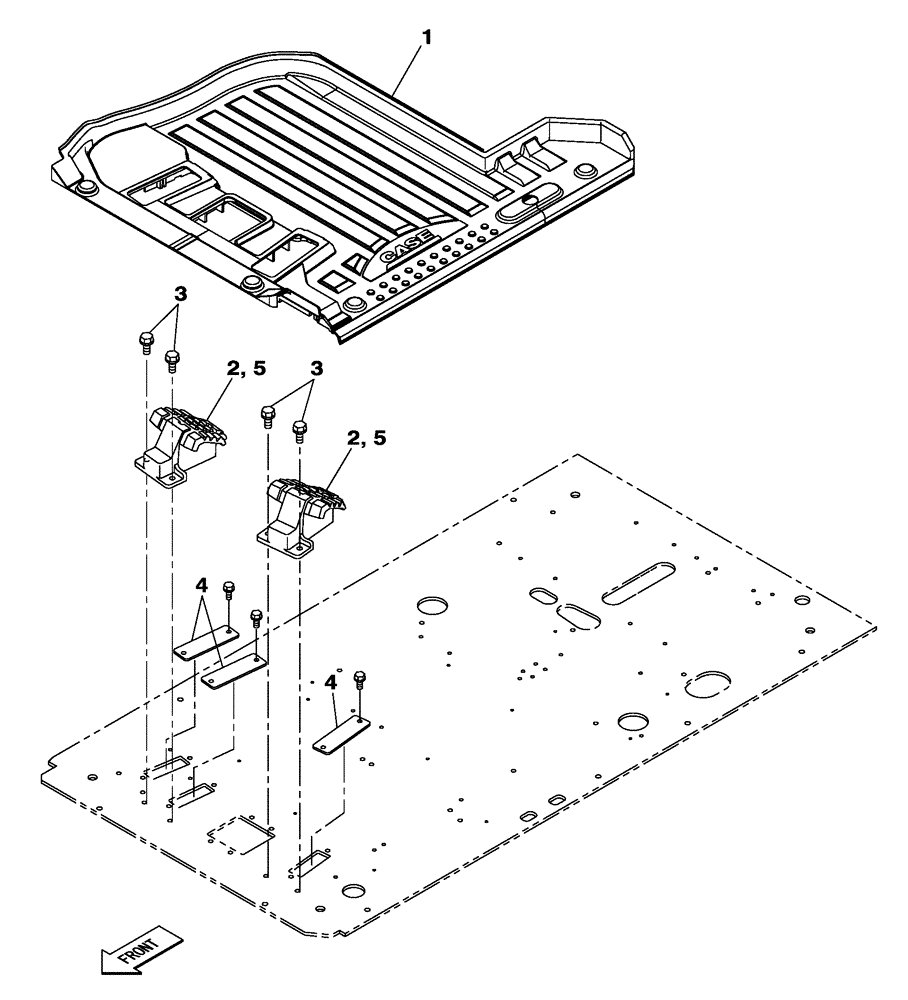

Схема запчастей Case CX300C - (09-010-00[01]) - OPERATORS COMPARTMENT - MAT, FLOOR - STANDARD (09) - CHASSIS/ATTACHMENTS
5
3
4
2
1
5
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ24320

FLOOR MAT

1шт.

2

KHJ13860

FOOTREST

2шт.

3

166052A1

BOLT

M10 x 25

4шт.

4

KHJ14550

GROMMET

3шт.

5

KHP1400

COVER

Protection Bag

2шт.
