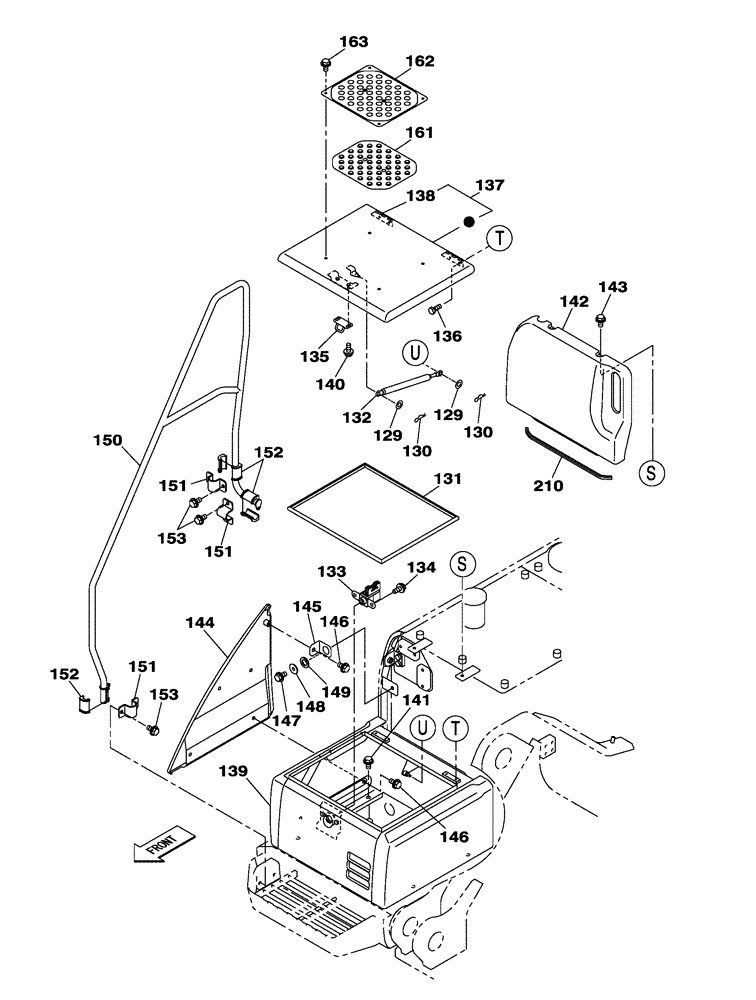

Запчасти Case CX300C (09-008-00[01]) - COWLING - FRONT RIGHT HAND-SIDE CABINET (09) - CHASSIS/ATTACHMENTS

129

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

130

153077A1

COTTER PIN

2шт.

131

KRN16030

SEALING STRIP

1шт.

132

KHN24400

GAS STRUT

1шт.

133

KHN12730

LOCK

1шт.

134

166351A1

BOLT,Sems, M10 x 20mm

2шт.

135

KHN12740

SUPPORT

1шт.

136

166350A1

BOLT

2шт.

137

KRN12360G1

COVER

1шт.

138

KHN3390

HINGE

2шт.

139

KRN12350G1

COVER

1шт.

140

166350A1

BOLT

1шт.

141

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

142

KRN12370G1

COVER

1шт.

143

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

144

KHN12710Y2

COVER

1шт.

145

KHN12720

SUPPORT

1шт.

146

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

147

166352A1

BOLT

1шт.

148

162409A1

WASHER

1шт.

149

KHN2061

WASHER

1шт.

150

KHN12681B1

STAY

1шт.

151

KHN12690

COLLAR

3шт.

152

KHN12700

COLLAR

6шт.

153

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

161

KHN10940

RUBBER PAD

2шт.

162

KHN13510B1

COVER

2шт.

163

KHN13540

BOLT,Spcl

8шт.

210

KRN12790

SEAL PROTECTION

1шт.
