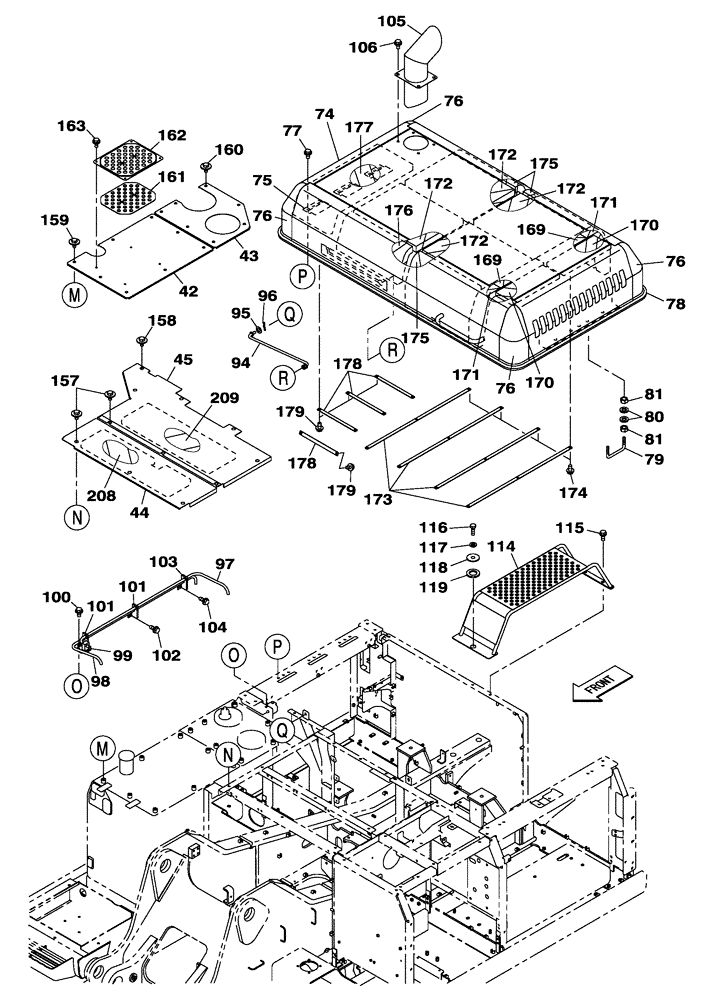

Запчасти Case CX300C (09-007-00[01]) - COWLING (09) - CHASSIS/ATTACHMENTS

42

KBN10940G1

COVER

1шт.

43

KBN10950G1

COVER

1шт.

44

KBN13680G1

TOP COVER

1шт.

45

KBN14520G1

TOP COVER

1шт.

74

KBN14310G1

ENGINE HOOD

1шт.

Include(s) 75, 76

1шт.

75

KTN1287

HINGE

3шт.

76

KTN10800

ENGINE HOOD

4шт.

77

166352A1

BOLT

9шт.

78

KHN14830

INSULATING PANEL

1шт.

79

KTN1274

HOOK

1шт.

80

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

81

829-1416

NUT,M16, Cl 10

4шт.

94

KSN1307

STAY

1шт.

95

166575A1

SHIM

1шт.

96

KHN2373

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

97

KBN14800

SPRING

1шт.

98

KBN14810

SPRING

1шт.

99

KBN14540

BRACKET, SUPPORTING

1шт.

100

166352A1

BOLT

2шт.

101

KTN1313

SUPPORT

2шт.

102

166352A1

BOLT

4шт.

103

166723A1

BRACKET

1шт.

104

166352A1

BOLT

2шт.

105

KBN14230

PIPE

1шт.

106

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

114

KBN13400

STEP

1шт.

115

166352A1

BOLT

2шт.

116

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

117

150811A1

WASHER

1шт.

118

162409A1

WASHER

1шт.

119

KHN2061

WASHER

1шт.

157

KHN12020

BOLT,Spcl

6шт.

158

KHN12020

BOLT,Spcl

5шт.

159

KHN12020

BOLT,Spcl

8шт.

160

KHN12020

BOLT,Spcl

7шт.

161

KHN10940

RUBBER PAD

2шт.

162

KHN13510B1

COVER

2шт.

163

KHN13540

BOLT,Spcl

8шт.

169

KBN14730

SEAL PROTECTION

2шт.

170

KBN13820

SEAL PROTECTION

2шт.

171

KBN13830

SEAL PROTECTION

2шт.

172

KBN14600

INSULATION

4шт.

173

KBN14750

SEAL RETAINER

4шт.

174

166345A1

BOLT

12шт.

175

KBN14610

INSULATION

3шт.

176

KBN14630

INSULATION

1шт.

177

KSN15580

INSULATOR

1шт.

178

KBN14760

SEAL RETAINER

4шт.

179

166345A1

BOLT

8шт.

208

KBN14850

INSULATION

1шт.

209

KBN11140

NOISE PROTECTION

1шт.
