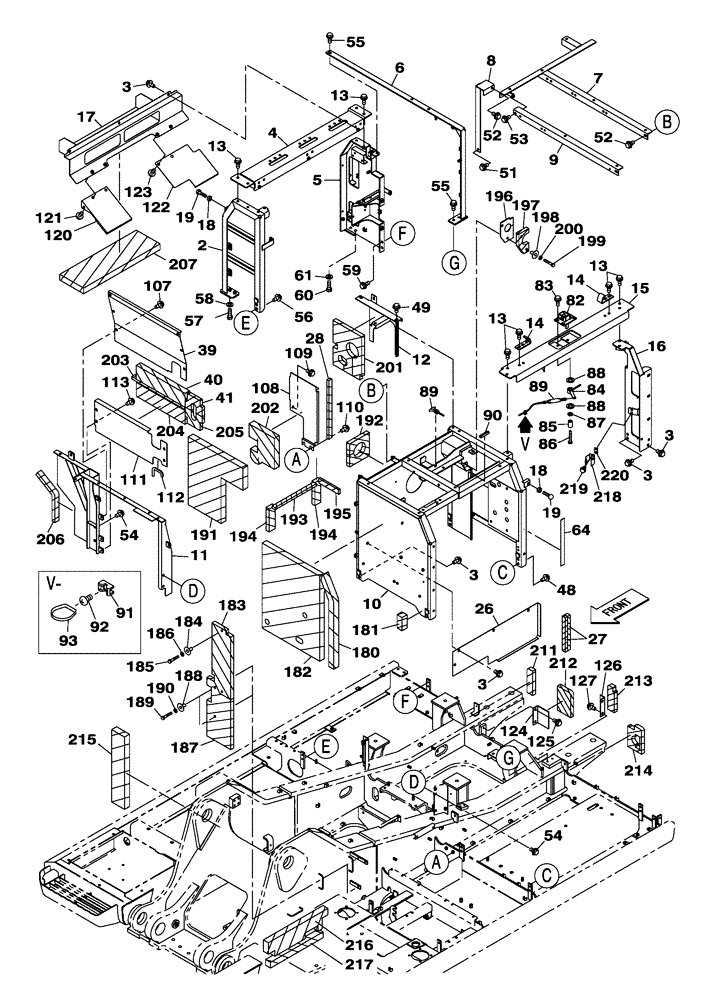

Запчасти Case CX300C (09-005-00[01]) - COWLING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
2
KBN14380
SUPPORT ASSY.
1шт.
3
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
19шт.
4
KBN14390G1
SUPPORT ASSY.
1шт.
5
KBN13740
SUPPORT ASSY.
1шт.
6
KBN14720
SUPPORT ASSY.
1шт.
7
KBN14710
SUPPORT ASSY.
1шт.
8
KBN13540
SUPPORT ASSY.
1шт.
9
KBN14700
SUPPORT ASSY.
1шт.
10
KBN14411
SUPPORT ASSY.
Replaces KBN14410
1шт.
11
KBN14420
SUPPORT ASSY.
1шт.
12
KBN14430
SUPPORT ASSY.
1шт.
13
166352A1
BOLT
12шт.
14
KSN1241
SUPPORT
2шт.
15
KBN13580G1
SUPPORT ASSY.
1шт.
16
KBN13590
SUPPORT ASSY.
1шт.
17
KBN14440
COVER
1шт.
18
829-1410
NUT,M10 x 1.5, Cl 10.9
8шт.
19
159091A1
STOP
2шт.
26
KBN13720
COVER
1шт.
27
KBN13970
SEAL PROTECTION
2шт.
28
KBN14450
SEAL PROTECTION
1шт.
39
KBN14490
COVER
1шт.
40
KBN14500
INSULATION
1шт.
41
KBN14510
SEAL PROTECTION
1шт.
48
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
6шт.
49
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
51
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
52
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
53
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
54
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
55
166352A1
BOLT
3шт.
56
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
57
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
2шт.
58
150811A1
WASHER
2шт.
59
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
60
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
2шт.
61
150811A1
WASHER
2шт.
64
160760A1
GROMMET
1шт.
82
KTN1400
LOCK
1шт.
83
166352A1
BOLT
4шт.
84
KTN10460
LINK
1шт.
85
KTN1386
SPACER
1шт.
86
827-8050
BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9
1шт.
87
153081A1
WASHER
1шт.
88
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
2шт.
89
KSN1283
CABLE
1шт.
90
HEH0026
RUBBER SEAL
1шт.
91
150860A1
COLLAR
1шт.
92
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
93
150067A1
MOUNTING CLIP
1шт.
107
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
6шт.
108
KBN14320
COVER
1шт.
109
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
110
166352A1
BOLT
2шт.
111
KBN14330
COVER
1шт.
112
KAN13600
RUBBER SEAL
1шт.
113
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
120
KBN14340
COVER
1шт.
121
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
122
KBN13600
COVER
1шт.
123
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
124
KBN11600
COVER
1шт.
125
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
126
KBN11610
COVER
1шт.
127
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
180
KRN20360
NOISE PROTECTION
1шт.
181
KBN13910
SEAL PROTECTION
1шт.
182
KBN14640
SEAL PROTECTION
1шт.
183
KBN14650
SEAL PROTECTION
1шт.
184
KHH0358
RETAINER
2шт.
185
827-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9
2шт.
186
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
187
KBN14660
SEAL PROTECTION
1шт.
188
KHH0358
RETAINER
2шт.
189
827-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9
2шт.
190
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
191
KBN14740
SEAL PROTECTION
1шт.
192
KBN11170
SEAL
1шт.
193
KBN11510
SEAL
1шт.
194
KBN13920
SEAL PROTECTION
2шт.
195
KBN14820
SEAL PROTECTION
1шт.
196
KBN13850
INSULATING PLATE
1шт.
197
KBN13860
SEAL PROTECTION
1шт.
198
KHH0358
RETAINER
2шт.
199
827-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9
2шт.
200
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
201
KBN14350
SEAL PROTECTION
1шт.
202
KBN13940
INSULATION
1шт.
203
KBN14360
SEAL PROTECTION
1шт.
204
KBN14500
INSULATION
1шт.
205
KBN14510
SEAL PROTECTION
1шт.
206
KBN14370
SEAL PROTECTION
1шт.
207
KBN14690
INSULATION
1шт.
211
KBN11560
SEAL
1шт.
212
KBN11570
SEAL
1шт.
213
KBN11580
SEAL
1шт.
214
KBN11790
SEAL PROTECTION
1шт.
215
KBN14670
SEAL PROTECTION
1шт.
216
KBN14680
SEAL PROTECTION
1шт.
217
KBN14790
SEAL PROTECTION
1шт.
218
152772A1
HOLDER
1шт.
219
166351A1
BOLT,Sems, M10 x 20mm
2шт.
220
KHN3548
PLATE
1шт.
Выбрано товаров: 103
