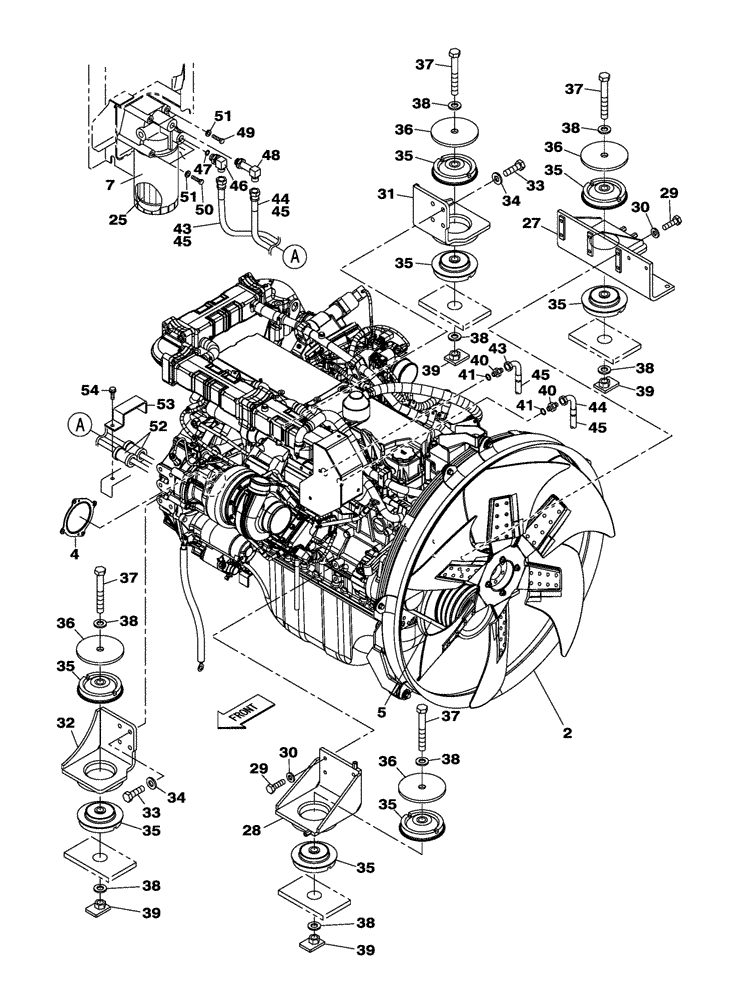

Запчасти Case CX300C (02-001-00[01]) - ENGINE MOUNTING - ENGINE - OIL CIRCUIT (02) - ENGINE

2

KBH12080

ENGINE

1шт.

See Figure(s) 02-001-01 01, 02-001-02 01

1шт.

2

47609677ER

REMAN-BASIC ENGINE

1шт.

2

47609677EPAC

CORE-BASIC ENGINE

Return Number

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

7

KSH10920

WIRE HARNESS

1шт.

25

NSS

NOT SOLD SEPARAT

1шт.

27

KSH11710

ENGINE MOUNT

1шт.

28

KSH11680

ENGINE MOUNT

1шт.

29

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

30

150409A1

WASHER

1шт.

31

KSH11690

ENGINE MOUNT

1шт.

32

KSH11700

ENGINE MOUNT

1шт.

33

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

34

150811A1

WASHER

1шт.

35

KSH11610

SILENTBLOC

1шт.

36

KSH11670

PLATE

1шт.

37

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

1шт.

38

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

1шт.

39

KSH0923

SPECIAL NUT

1шт.

40

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

1шт.

Include(s) 41

1шт.

41

154503A1

O-RING

1шт.

43

KRH10330

HYDRAULIC HOSE,19.00 mm ID x 1350.00 mm

1шт.

44

KBH10590

HYDRAULIC HOSE,19.00 mm ID x 1450.00 mm

1шт.

45

157862A1

PLASTIC-RUBBER TUBE

(Replaced KBR0819)

1шт.

46

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Include(s) 47

1шт.

47

154503A1

O-RING

1шт.

48

KHJ22650

ELBOW

1шт.

49

102R008Y110R

BOLT

1шт.

50

KHH0515

BOLT

1шт.

51

153081A1

WASHER

1шт.

52

KHJ2023

HOSE CLAMP

1шт.

53

KHH13550

BRACKET

1шт.

54

166052A1

BOLT

1шт.
