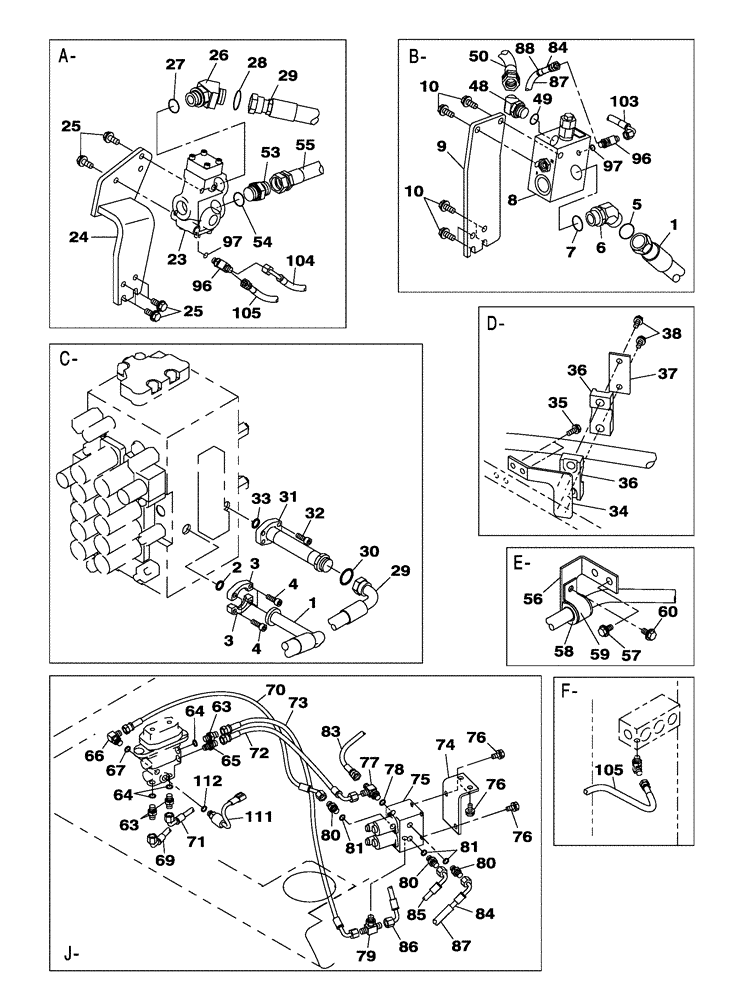

Запчасти Case CX300C (08-043-00[01]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (08) - HYDRAULICS

1

KBJ12510

HYDRAULIC HOSE,25.40 mm ID x 1050.00 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ11370

ELBOW

1шт.

Include(s) 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ10410

VALVE SECTION

1шт.

See Figure(s) 08-253-00 01

1шт.

9

KRJ11470

SUPPORT

1шт.

10

166352A1

BOLT

M12 x 30

6шт.

23

KHJ10420

VALVE SECTION

1шт.

See Figure(s) 08-252-00 01

1шт.

24

KBJ16300

BRACKET, SUPPORTING

1шт.

25

166352A1

BOLT

M12 x 30

6шт.

26

KHJ11370

ELBOW

1шт.

Include(s) 27

1шт.

27

154523A1

O-RING

1шт.

28

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

29

KBJ16310

HOSE ASSY.

1540 mm

1шт.

30

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

31

KBJ11870

HYD TUBE,26 mm ID x 34 mm OD

1шт.

32

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

33

155211A1

O-RING

1шт.

34

KBJ11840

BRACKET

1шт.

35

166352A1

BOLT

M12 x 30

2шт.

36

KRJ11450

HOSE CLIP

2шт.

37

KRJ10800

PLATE

1шт.

38

166052A1

BOLT

M10 x 25

2шт.

48

157586A1

ELBOW

1шт.

Include(s) 49

1шт.

49

154503A1

O-RING

1шт.

50

KBJ13790

HYDRAULIC HOSE,740.00 mm

1шт.

53

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

1шт.

Include(s) 54

1шт.

54

154523A1

O-RING

1шт.

55

KBJ12260

HYDRAULIC HOSE,25.40 mm ID x 1120.00 mm

1шт.

56

KBJ15230

BRACKET, SUPPORTING

1шт.

57

166352A1

BOLT

M12 x 30

2шт.

58

KHJ2680

COLLAR CLAMP

1шт.

59

KBJ11860

SUPPORT

1шт.

60

166352A1

BOLT

M12 x 30

1шт.

63

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

161841A1

HYD CONNECTOR

1шт.

66

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 67

1шт.

67

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

69

KHJ13660

HYDRAULIC HOSE

3300 mm

1шт.

70

KHJ14650

HYDRAULIC HOSE

650 mm

1шт.

71

KHJ16300

HOSE

3650 mm

1шт.

72

KHJ2085

HOSE

600 mm

1шт.

73

KHJ2194

HOSE,6.3mm ID x 650mm L

650 mm

1шт.

74

KHJ11510

SUPPORT

1шт.

75

KHJ14780

VALVE SECTION

1шт.

See Figure(s) 08-251-00 01

1шт.

76

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

4шт.

77

159497A1

TEE

1шт.

Include(s) 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

167321A1

TEE

1шт.

80

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 81

1шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

KHJ2036

HOSE

750 mm

1шт.

84

KHJ19010

HOSE

4500 mm, Replaces KHJ17630

1шт.

85

KHJ18110

HOSE

4100 mm, Replaces KHJ14790

1шт.

86

KHJ23570

FLEXIBLE HOSE

730 mm

1шт.

87

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1000 mm

1шт.

88

150067A1

MOUNTING CLIP

150 mm

2шт.

96

159497A1

TEE

2шт.

Include(s) 97

1шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ2088

HOSE

850 mm

1шт.

104

KHJ2090

HOSE

1000 mm

1шт.

105

KHJ2033

HOSE

850 mm

1шт.

111

KHR21490

PRESSURE SWITCH

0.49 MPA

1шт.

Include(s) 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
