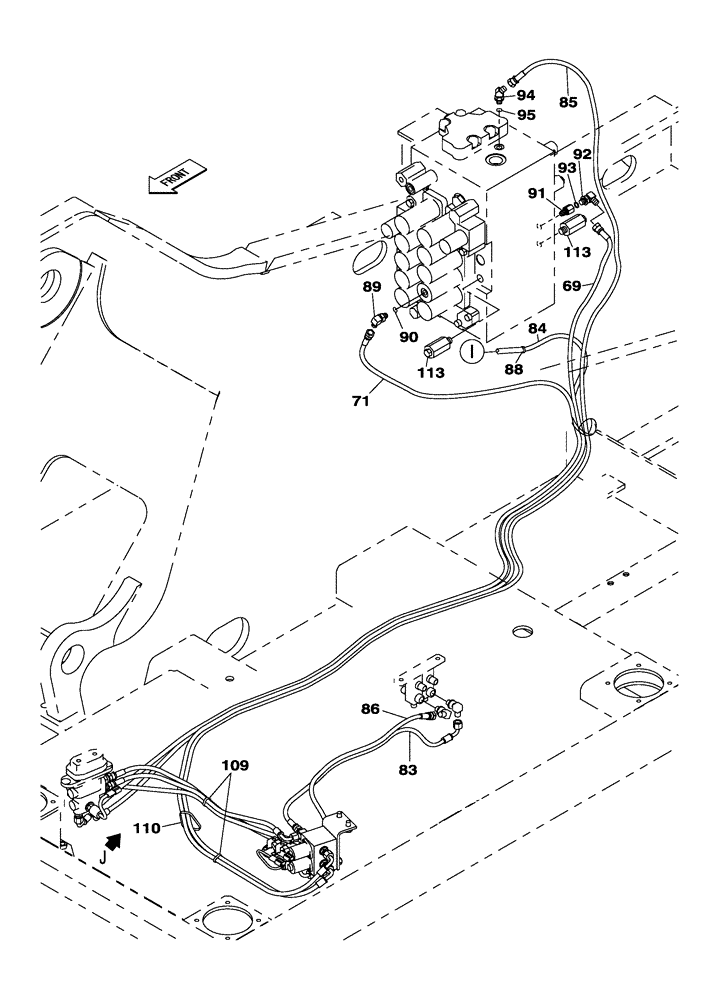

Запчасти Case CX300C (08-042-00[01]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (08) - HYDRAULICS

69

KHJ13650

HYDRAULIC HOSE

3300 mm, Replaces KHJ13660

1шт.

71

KHJ14650

HYDRAULIC HOSE

3650 mm

1шт.

83

KHJ2036

HOSE

750 mm

1шт.

84

KHJ17630

HOSE

4500 mm

1шт.

85

KHJ18110

HOSE

4100 mm, Replaces KHJ14790

1шт.

86

KHJ23570

FLEXIBLE HOSE

730 mm

1шт.

88

150067A1

MOUNTING CLIP

150 mm

2шт.

89

KHJ0917

ADAPTER

1шт.

Include(s) 90

1шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

91

KHJ25100

STUD

1шт.

92

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 93

1шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

150933A1

ELBOW

1шт.

Include(s) 95

1шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

150496A1

MOUNTING CLIP

250 mm

9шт.

110

150498A1

MOUNTING CLIP

300 mm

1шт.

113

155745A1

VALVE PRESSURE RELIE

2шт.
