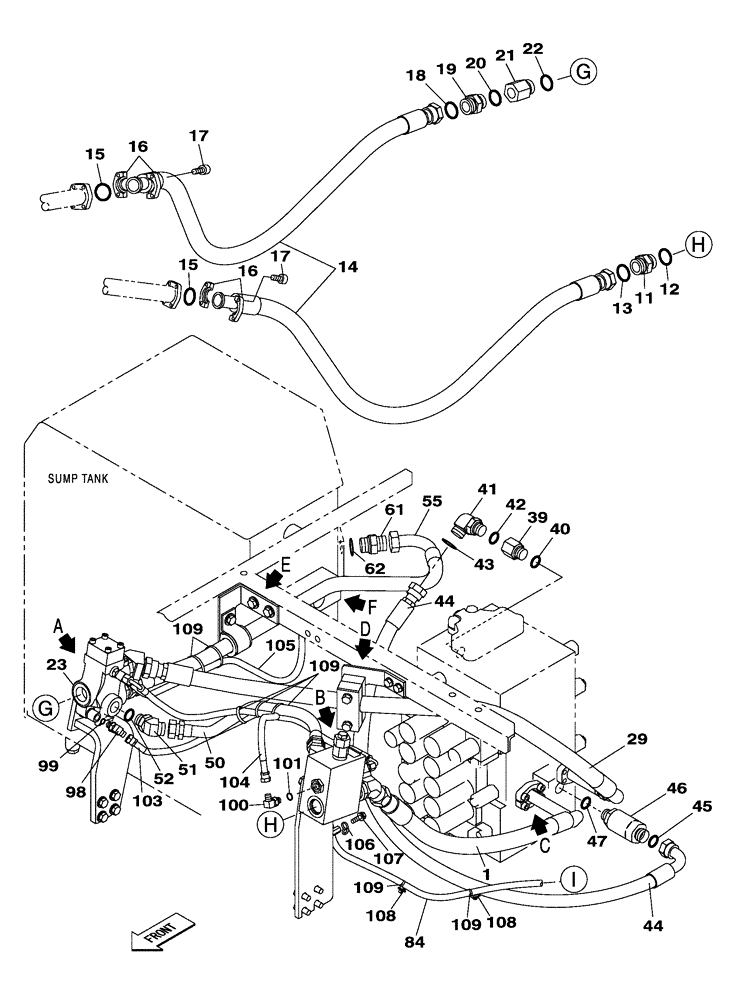

Запчасти Case CX300C (08-041-00[01]) - HYDRAULIC CIRCUIT - OPTIONAL - 3-WAY (08) - HYDRAULICS

1

KBJ12510

HYDRAULIC HOSE,25.40 mm ID x 1050.00 mm

1шт.

11

KHJ1349

ADAPTER

1шт.

Include(s) 12

1шт.

12

154523A1

O-RING

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

14

KBJ11790

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

2шт.

15

164450A1

O-RING

2шт.

16

150124A1

FLANGE

4шт.

17

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

18

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

19

KHJ1349

ADAPTER

1шт.

Include(s) 20

1шт.

20

154523A1

O-RING

1шт.

21

KHJ0832

SOCKET

1шт.

Include(s) 22

1шт.

22

154523A1

O-RING

1шт.

23

KHJ10420

VALVE SECTION

1шт.

See Figure(s) 08-252-00 01

1шт.

29

KBJ16310

HOSE ASSY.

1540 mm

1шт.

39

159198A1

ADAPTER

1шт.

Include(s) 40

1шт.

40

154503A1

O-RING

1шт.

41

KHJ1804

ELBOW

1шт.

Include(s) 42

1шт.

42

154503A1

O-RING

1шт.

43

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

44

KBJ12520

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

1шт.

45

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

46

KHJ10480

VALVE SECTION

1шт.

Include(s) 47

1шт.

47

154503A1

O-RING

1шт.

50

KBJ13790

HYDRAULIC HOSE,740.00 mm

1шт.

51

157586A1

ELBOW

1шт.

Include(s) 52

1шт.

52

154503A1

O-RING

1шт.

55

KBJ12260

HYDRAULIC HOSE,25.40 mm ID x 1120.00 mm

1шт.

61

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

1шт.

Include(s) 62

1шт.

62

154523A1

O-RING

1шт.

84

KHJ19010

HOSE

4500 mm, Replaces KHJ17630

1шт.

98

150933A1

ELBOW

1шт.

Include(s) 99

1шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 101

1шт.

101

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ2088

HOSE

850 mm

1шт.

104

KHJ2090

HOSE

1000 mm

1шт.

105

KHJ2033

HOSE

850 mm

1шт.

106

KHR2584

CLAMP

1шт.

107

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

108

KHR10220

MOUNTING CLIP

2шт.

109

150496A1

MOUNTING CLIP

250 mm

10шт.
