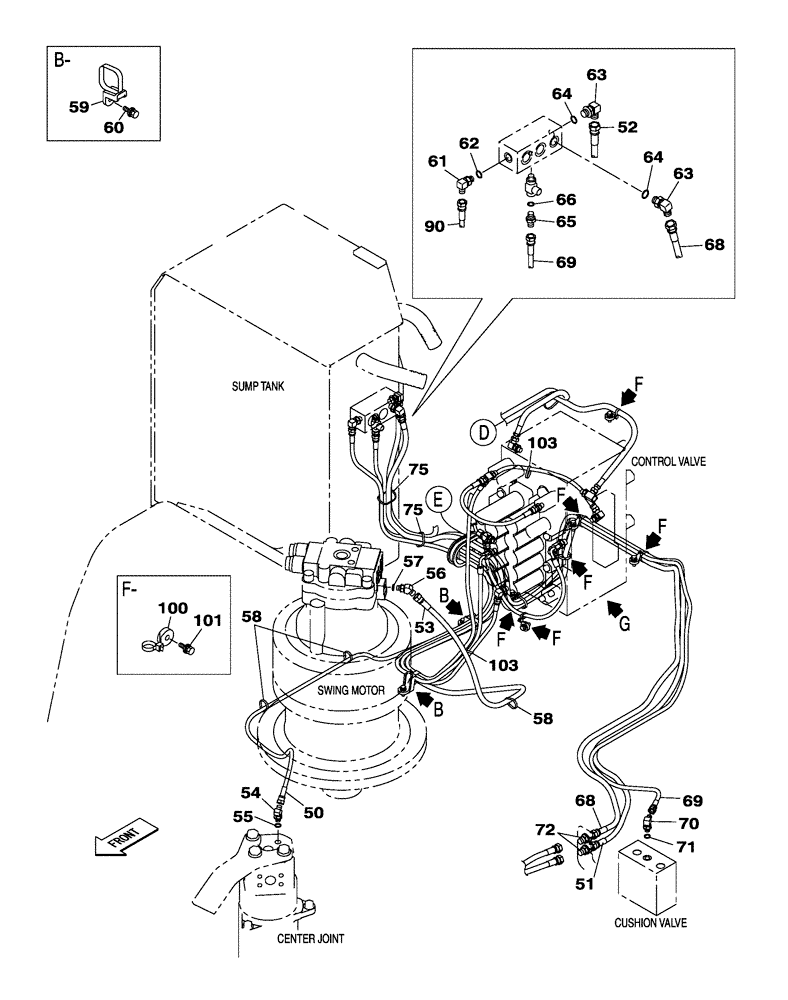

Запчасти Case CX300C (08-039-00[01]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (08) - HYDRAULICS

50

KHJ2440

HOSE

2600 mm

1шт.

51

KHJ2746

HOSE

3300 mm

1шт.

52

KHJ11570

HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm

1шт.

53

KHJ2626

HYDRAULIC HOSE,2650.00 mm

1шт.

54

150933A1

ELBOW

1шт.

Include(s) 55

1шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

56

161087A1

ELBOW

1шт.

Include(s) 57

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

150496A1

MOUNTING CLIP

250 mm

7шт.

59

KHR2581

CLAMP

3шт.

60

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

61

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 62

1шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

2шт.

Include(s) 64

1шт.

64

154475A1

O-RING

1шт.

65

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

Include(s) 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

KHJ2193

HOSE ASSY.

3250 mm

1шт.

69

KHJ11010

HYDRAULIC HOSE

3350 mm

1шт.

70

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

162826A1

ADAPTER

2шт.

75

150496A1

MOUNTING CLIP

250 mm

3шт.

90

KHJ2525

HOSE

20000 mm

1шт.

100

KHR2584

CLAMP

6шт.

101

KHJ1215

BOLT,Spcl

M8 x 25

6шт.

102

KHR10220

MOUNTING CLIP

1шт.

103

150496A1

MOUNTING CLIP

250 mm

3шт.
