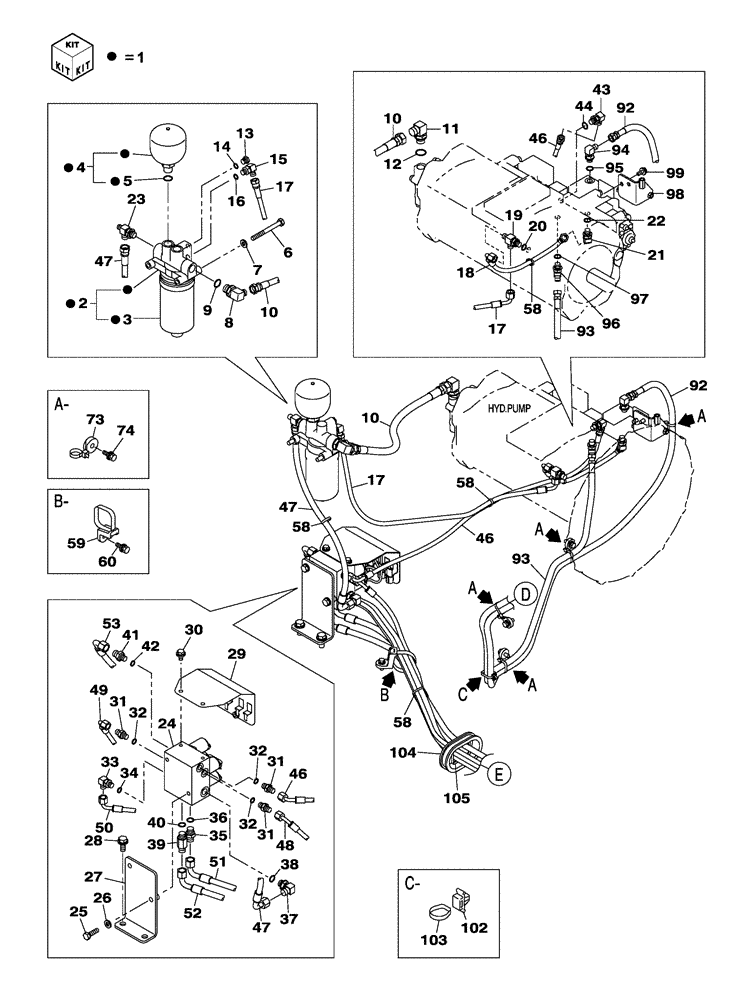

Запчасти Case CX300C (08-038-00[01]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (08) - HYDRAULICS

1

KHJ17710

FILTER ASSY

1шт.

Include(s) 2 - 5

1шт.

2

KHJ17720

FILTER HEAD

1шт.

Include(s) 3

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

1шт.

4

KHJ2359

ACCUMULATOR

1шт.

Include(s) 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

1шт.

Include(s) 9

1шт.

9

154487A1

O-RING

1шт.

10

KHJ17820

HYDRAULIC HOSE

630 mm

1шт.

11

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

1шт.

Include(s) 12

1шт.

12

154487A1

O-RING

1шт.

13

159002A1

PLUG

1шт.

Include(s) 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

900 mm

1шт.

18

KHJ2342

HOSE

380 mm

1шт.

19

159497A1

TEE

1шт.

Include(s) 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

150933A1

ELBOW

1шт.

Include(s) 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

KHJ13900

TEE

1шт.

24

KHJ14520

SOLENOID VALVE

1шт.

See Figure(s) 08-250-00 01

1шт.

25

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

26

150409A1

WASHER

2шт.

27

KHJ14960

SUPPORT

1шт.

28

166352A1

BOLT

M12 x 30

2шт.

29

KHJ16220

COVER

1шт.

30

166345A1

BOLT

M8 x 16

2шт.

31

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

3шт.

Include(s) 32

1шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

35

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Include(s) 36

1шт.

36

154475A1

O-RING

1шт.

37

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

Include(s) 38

1шт.

38

154475A1

O-RING

1шт.

39

159226A1

ADAPTER

1шт.

Include(s) 40

1шт.

40

154475A1

O-RING

1шт.

41

152747A1

ADAPTER

1шт.

Include(s) 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

KHJ2249

HOSE

950 mm

1шт.

47

KHJ2148

HOSE

550 mm

1шт.

48

KHJ25000

HOSE ASSY.

2200 mm

1шт.

49

KHJ2380

HOSE ASSY.

2100 mm

1шт.

50

KHJ2440

HOSE

2600 mm

1шт.

51

KHJ2746

HOSE

3300 mm

1шт.

52

KHJ11570

HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm

1шт.

53

KHJ2626

HYDRAULIC HOSE,2650.00 mm

1шт.

58

150496A1

MOUNTING CLIP

250 mm

7шт.

59

KHR2581

CLAMP

3шт.

60

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

73

KHR2584

CLAMP

4шт.

74

KHJ1215

BOLT,Spcl

M8 x 25

4шт.

92

KHJ2692

HYDRAULIC HOSE,6.30 mm ID x 2700.00 mm

1шт.

93

KHJ2725

HYDRAULIC HOSE,6.30 mm ID x 2000.00 mm

1шт.

94

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 95

1шт.

95

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

150933A1

ELBOW

1шт.

Include(s) 97

1шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

98

KRJ16150

SUPPORT

1шт.

99

166350A1

BOLT

M8 x 20

2шт.

102

KHR10220

MOUNTING CLIP

1шт.

103

150496A1

MOUNTING CLIP

250 mm

3шт.

104

MMA1011

RUBBER SEAL

320 mm

1шт.

105

150496A1

MOUNTING CLIP

250 mm

1шт.
