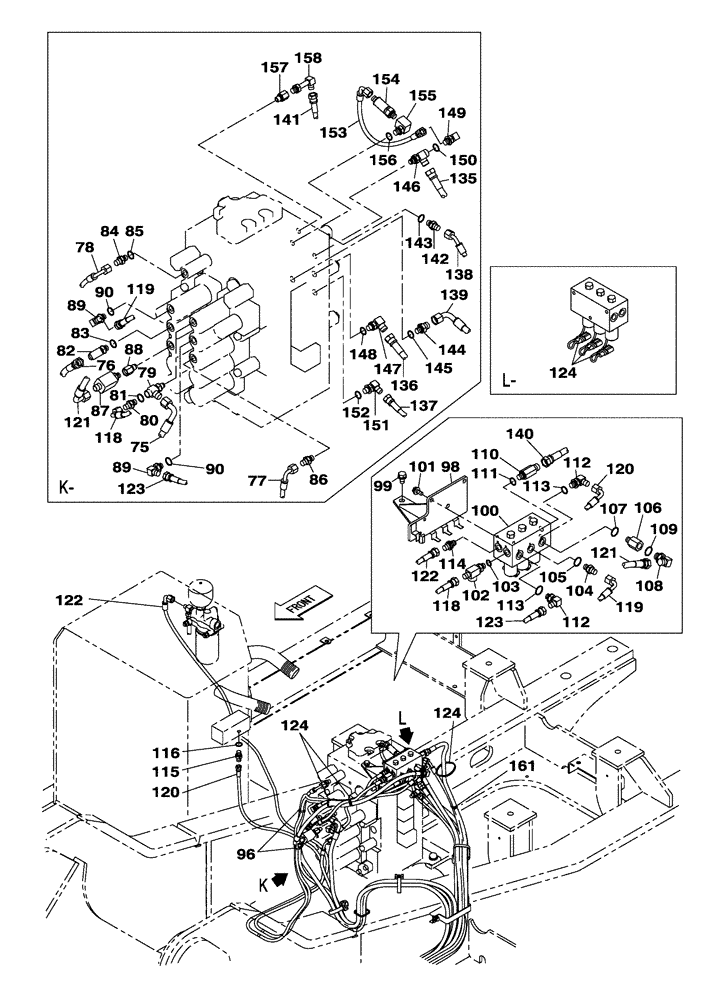

Запчасти Case CX300C (08-035-00[01]) - HYDRAULIC CIRCUIT - HAND CONTROL PILOT - WITHOUT SAFETY VALVE (08) - HYDRAULICS
![Схема запчастей Case CX300C - (08-035-00[01]) - HYDRAULIC CIRCUIT - HAND CONTROL PILOT - WITHOUT SAFETY VALVE (08) - HYDRAULICS](https://partsell.ru/storage/images/casece/1296755.png)
№
Артикул
Название
Примечание
Количество
75
KHJ14110
HYDRAULIC HOSE
2150 mm
1шт.
76
KHJ2625
HOSE
2100 mm
1шт.
77
KHJ2341
HOSE
2200 mm
1шт.
78
KHJ2134
HOSE,6.3mm ID x 2250mm L
2250 mm
1шт.
79
KHJ25080
TEE
1шт.
80
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 81
1шт.
81
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
82
KHJ0918
ADAPTER
1шт.
Include(s) 83
1шт.
83
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
84
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 85
1шт.
85
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
86
161841A1
HYD CONNECTOR
1шт.
87
KHJ1372
ADAPTER
1шт.
88
KHJ25100
STUD
1шт.
89
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
2шт.
Include(s) 90
1шт.
90
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
96
150496A1
MOUNTING CLIP
250 mm
2шт.
98
KBJ15690
BRACKET, SUPPORTING
1шт.
99
166351A1
BOLT,Sems, M10 x 20mm
M10 x 20
2шт.
100
KHJ23870
VALVE
1шт.
101
166350A1
BOLT
M8 x 20
3шт.
102
167666A1
FITTING
1шт.
Include(s) 103
1шт.
103
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
104
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 105
1шт.
105
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
106
KHJ1584
UNION
1шт.
Include(s) 107
1шт.
107
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
108
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
1шт.
Include(s) 109
1шт.
109
154475A1
O-RING
1шт.
110
161173A1
ADAPTER
1шт.
Include(s) 111
1шт.
111
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
112
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
2шт.
Include(s) 113
1шт.
113
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
114
161841A1
HYD CONNECTOR
1шт.
115
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 116
1шт.
116
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
118
KHJ2351
HOSE
420 mm
1шт.
119
KHJ2309
HOSE
550 mm
1шт.
120
KHJ2167
HOSE
2800 mm
1шт.
121
KHJ21090
HOSE ASSY.
750 mm
1шт.
122
KHJ17550
HOSE
3350 mm
1шт.
123
KHJ21880
FLEXIBLE HOSE
500 mm
1шт.
124
150496A1
MOUNTING CLIP
250 mm
6шт.
135
KHJ2381
HOSE ASSY.
1600 mm
1шт.
136
KHJ2272
HOSE ASSY.
1550 mm
1шт.
137
KHJ2058
HOSE
1550 mm
1шт.
138
KHJ12320
HYDRAULIC HOSE
1650 mm
1шт.
139
KHJ16260
HYDRAULIC HOSE,9.52 mm ID x 1750.00 mm
1шт.
140
KHJ17580
HOSE
1900 mm
1шт.
141
KHJ22760
HOSE ASSY.
1750 mm
1шт.
142
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
Include(s) 143
1шт.
143
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
144
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
1шт.
Include(s) 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
146
KHJ25080
TEE
1шт.
147
KHJ0918
ADAPTER
1шт.
Include(s) 148
1шт.
148
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
149
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
1шт.
Include(s) 150
1шт.
150
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
151
KHJ0917
ADAPTER
1шт.
Include(s) 152
1шт.
152
154467A1
O-RING,10.8mm ID x 2.4mm Width
4шт.
153
KHJ2084
HOSE
1шт.
154
KHJ1399
VALVE, CUSHION
1шт.
See Figure(s) 08-256-00 01
1шт.
155
KHJ0719
ELBOW
1шт.
Include(s) 156
1шт.
156
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
157
KHJ13640
STUD
1шт.
158
KHJ1178
ELBOW
1шт.
161
150496A1
MOUNTING CLIP
250 mm
3шт.
Выбрано товаров: 86
