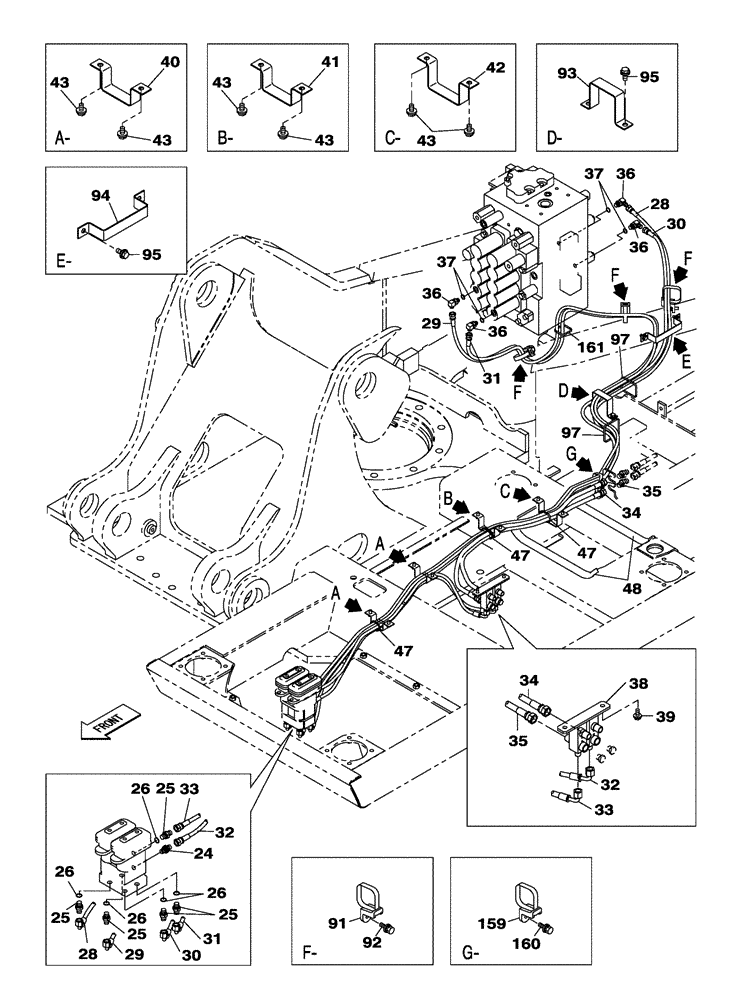

Запчасти Case CX300C (08-032-00[01]) - HYDRAULIC CIRCUIT - TRAVEL PILOT (WITHOUT VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

24

161841A1

HYD CONNECTOR

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

5шт.

Include(s) 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

KHJ12230

HYDRAULIC HOSE

3450 mm

1шт.

29

KHJ17840

HOSE

3700 mm

1шт.

30

KHJ17550

HOSE

3350 mm

1шт.

31

KHJ18020

HOSE

3650 mm, Replaces KHJ16300

1шт.

32

KHJ2092

HOSE

1100 mm

1шт.

33

KHJ2092

HOSE

1100 mm

1шт.

34

KHJ23000

FLEXIBLE HOSE

950 mm

1шт.

35

KHJ2623

HOSE

1000 mm

1шт.

36

KHJ0917

ADAPTER

4шт.

Include(s) 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

38

KRJ27381

HYDRAULIC MANIFOLD

1шт.

39

166350A1

BOLT

M8 x 20

2шт.

40

KHJ1220

COLLAR

2шт.

41

KHJ13770

COLLAR

2шт.

42

KHJ24020

CLAMP

2шт.

43

166345A1

BOLT

M8 x 16

12шт.

47

150498A1

MOUNTING CLIP

300 mm

3шт.

48

KBJ16190

SEAL

430 mm

2шт.

91

KHR2581

CLAMP

3шт.

92

KHJ1215

BOLT,Spcl

M8 x 25

3шт.

93

161095A1

CLAMP

1шт.

94

KHJ1906

CLAMP

1шт.

95

166350A1

BOLT

M8 x 20

4шт.

97

150498A1

MOUNTING CLIP

300 mm

3шт.

159

KHR2581

CLAMP

1шт.

160

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

161

150496A1

MOUNTING CLIP

250 mm

3шт.
