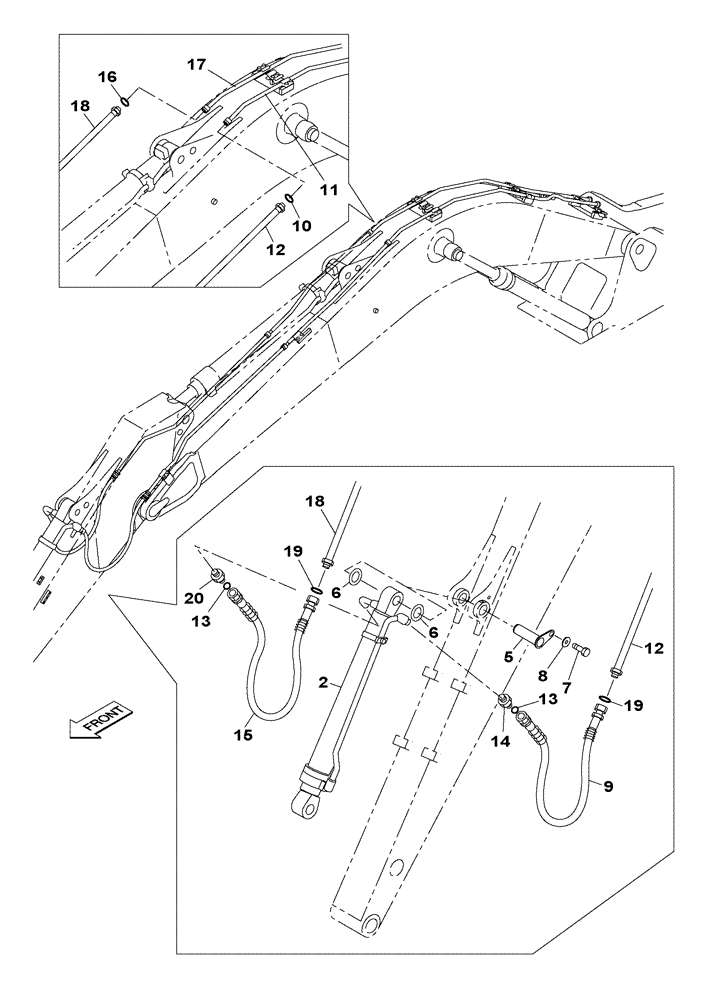

Запчасти Case CX300C (08-022-00[01]) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - DIPPER 3.66 M (08) - HYDRAULICS

2

KBV13620

BUCKET CYLINDER

1шт.

See Figure(s) 08-303-00 01

1шт.

2

KBV13620R

REMAN-HYD CYLINDER

CX300C CRAWLER EXCAVATOR TIER 4 (NA), BUCKET CYLINDER, DIPPER 3.66 M (3/11-)

1шт.

2

KBV13620C

CORE-HYD CYLINDER

Return Number

1шт.

5

KBV11530

PIN

1шт.

6

159741A1

SHIM

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

157141A1

WASHER

1шт.

9

KBV16820

HYDRAULIC HOSE

1шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

11

KBV15030Y2

HYD TUBE

1шт.

12

KBV16410Y2

HYD TUBE

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KHJ15840

ADAPTER

1шт.

15

KBV16820

HYDRAULIC HOSE

1шт.

16

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

17

KBV15050Y2

HYD TUBE

1шт.

18

KBV16420Y2

HYD TUBE

1шт.

19

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

20

KHJ15840

ADAPTER

1шт.
