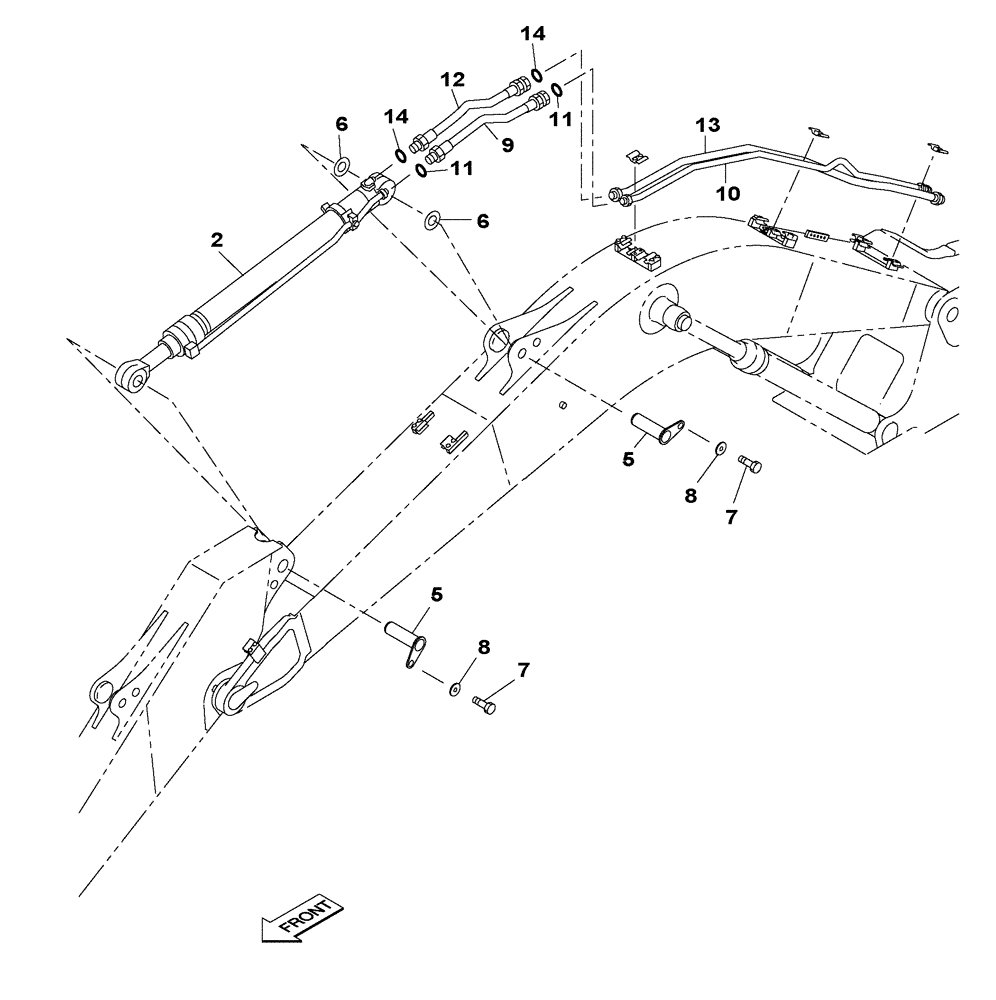

Запчасти Case CX300C (08-018-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - MONOBLOCK BOOM - 6.15 M (08) - HYDRAULICS

1

KBV13590

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-302-00 01

1шт.

1

KBV13590R

REMAN-HYD CYLINDER

Reman For New P/N KBV13590

1шт.

1

KBV13590C

CORE-HYD CYLINDER

Return Number

1шт.

5

KBV14540

PIN

2шт.

6

KBV1629

SHIM

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

8

157141A1

WASHER

2шт.

9

KRV35020

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

10

KBV14550

HYD TUBE

1шт.

11

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

12

KRV35020

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

13

KBV14560

HYD TUBE

1шт.

14

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
