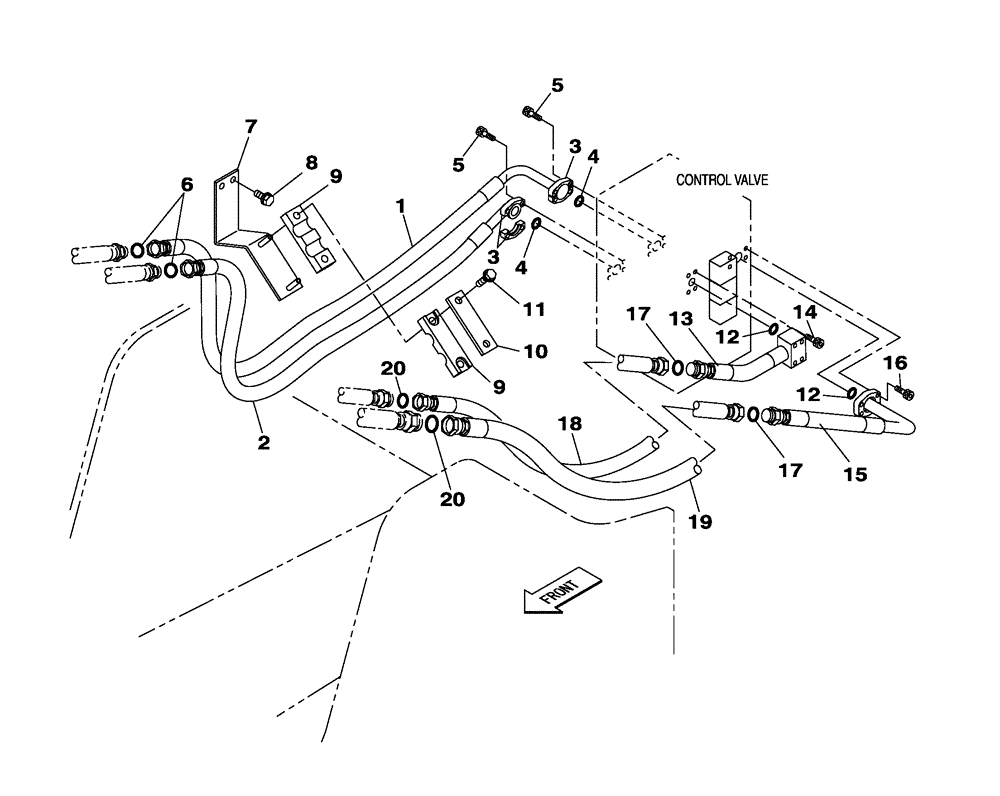

Запчасти Case CX300C (08-017-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER (08) - HYDRAULICS

1

KBJ16130

HOSE ASSY.

1шт.

2

KBJ16140

HOSE ASSY.

1шт.

3

153459A1

FLANGE

4шт.

4

155211A1

O-RING

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

7

KBJ16150

BRACKET, SUPPORTING

1шт.

8

166352A1

BOLT

2шт.

9

KRJ10860

HOSE CLIP

2шт.

10

KRJ10870

PLATE

1шт.

11

166052A1

BOLT

2шт.

12

155211A1

O-RING

2шт.

13

KBJ11570

HYD TUBE,26 mm ID x 34 mm OD

1шт.

14

862-10065

HEX SOC SCREW,M10 x 65mm, Cl 12.9

4шт.

15

KBJ11580

HYD TUBE,26 mm ID x 34 mm OD

1шт.

16

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

18

KBJ11561

HYDRAULIC HOSE

1шт.

19

KBJ12491

HYDRAULIC HOSE

1шт.

20

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.
