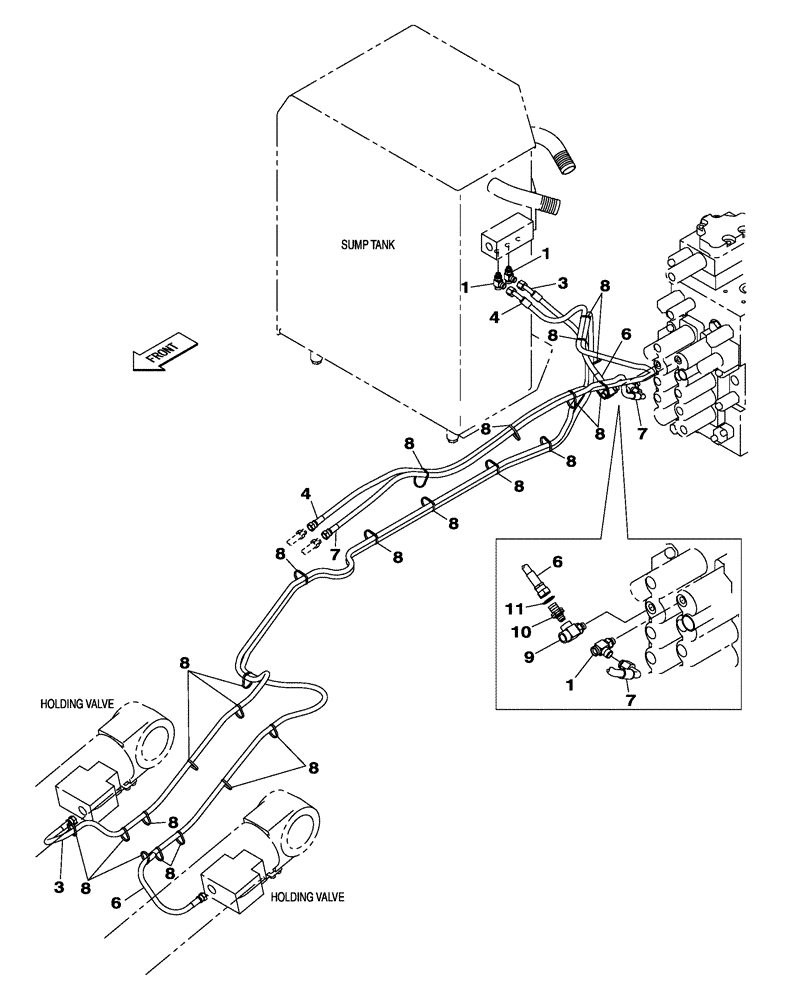

Запчасти Case CX300C (08-016-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER - WITH SAFETY VALVE (08) - HYDRAULICS

1

KHJ11560

TEE

3шт.

3

KHJ25020

HOSE ASSY.

3450 mm

1шт.

4

KHJ25010

HOSE ASSY.

2300 mm

1шт.

6

KHJ25710

HYDRAULIC HOSE

4150 mm

1шт.

7

KHJ25030

HOSE ASSY.

1550 mm

1шт.

8

150496A1

MOUNTING CLIP

250 mm

23шт.

9

KHJ12530

TEE

1шт.

10

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

1шт.

Include(s) 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
