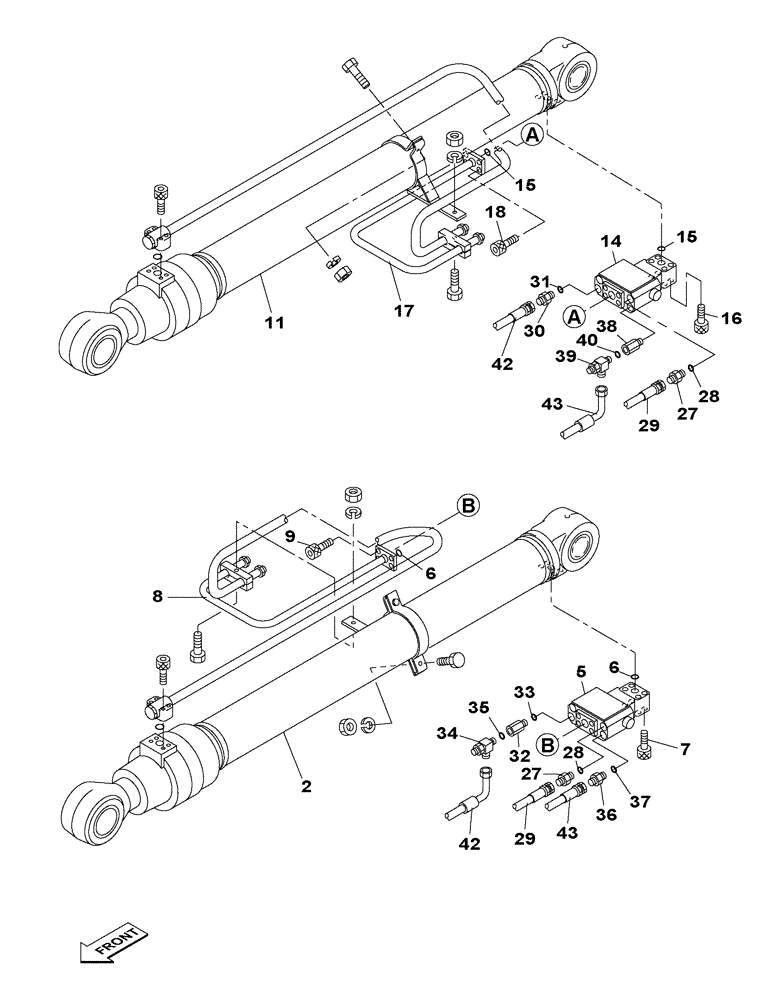

Запчасти Case CX300C (08-015-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER - WITH SAFETY VALVE (08) - HYDRAULICS

2

KBV13650

HYDRAULIC CYLINDER

Left

1шт.

See Figure(s) 08-301-01 01

1шт.

5

KRV11110

VALVE SECTION

1шт.

See Figure(s) 08-400-00 01

1шт.

6

155210A1

O-RING

2шт.

7

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

8

KBV15150

HYD TUBE

1шт.

9

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

11

KBV13640

HYDRAULIC CYLINDER

Right

1шт.

See Figure(s) 08-300-01 01

1шт.

14

KRV11110

VALVE SECTION

1шт.

See Figure(s) 08-400-00 01

1шт.

15

155210A1

O-RING

2шт.

16

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

4шт.

17

KBV15160

HYD TUBE

1шт.

18

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

27

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

Include(s) 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

KBV15170

HYDRAULIC HOSE

1шт.

30

150747A1

ADJUSTING PLATE

1шт.

Include(s) 31

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

162525A1

STUD

1шт.

Include(s) 33

1шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

1шт.

Include(s) 35

1шт.

35

154475A1

O-RING

1шт.

36

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

Include(s) 37

1шт.

37

154475A1

O-RING

1шт.

38

KHV0373

STUD

1шт.

39

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

1шт.

Include(s) 40

1шт.

40

154475A1

O-RING

1шт.

42

KHJ15360

HYDRAULIC HOSE

1200 mm

1шт.

43

KHJ15360

HYDRAULIC HOSE

1200 mm

1шт.
