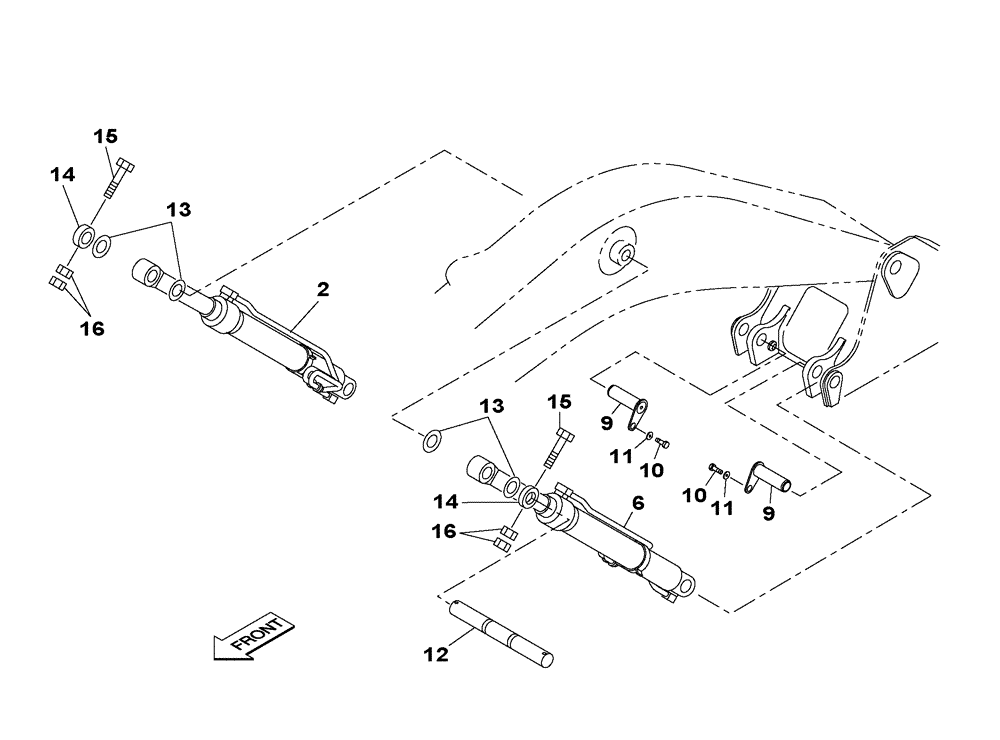

Запчасти Case CX300C (08-013-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER - WITHOUT SAFETY VALVE (08) - HYDRAULICS

2

KBV13600

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-300-00 01

1шт.

2

KBV13600R

REMAN-HYD CYLINDER

CX300C CRAWLER EXCAVATOR TIER 4 (NA), BOOM CYLINDER, WITHOUT SAFETY VALVE (3/11-)

1шт.

2

KBV13600C

CORE-HYD CYLINDER

Return Number

1шт.

6

KBV13610

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-301-00 01

1шт.

6

KBV13610R

REMAN-HYD CYLINDER

CX300C CRAWLER EXCAVATOR TIER 4 (NA), BOOM CYLINDER, WITHOUT SAFETY VALVE (3/11-)

1шт.

6

KBV13610C

CORE-HYD CYLINDER

Return Number

1шт.

9

KBV13720

PIN

2шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

11

157141A1

WASHER

2шт.

12

KBV13580

PIN

1шт.

13

158453A1

SHIM

1.2 mm

4шт.

14

163086A1

COLLAR

2шт.

15

514-1219

BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9

2шт.

16

829-11420

NUT,M20 x 1.5, Cl 10

4шт.

17

163087A1

HOSE CLIP

2шт.

Not Illustrated

1шт.
