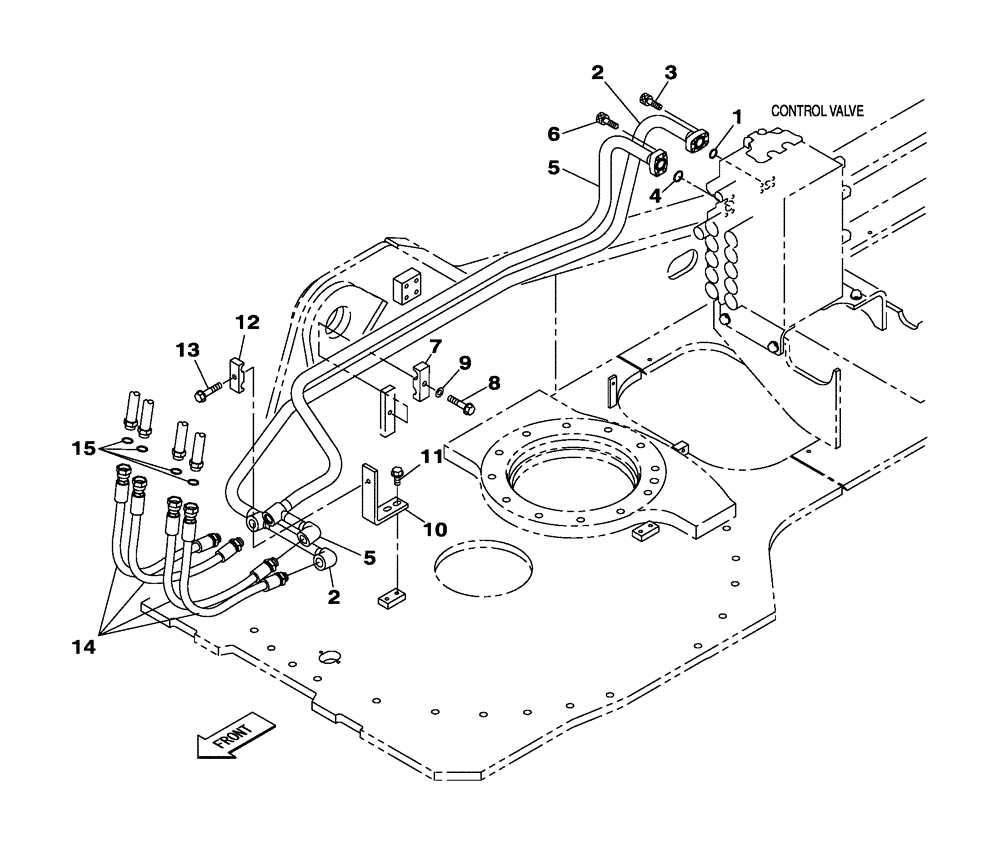

Запчасти Case CX300C (08-012-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER (08) - HYDRAULICS

1

162246A1

O-RING

1шт.

2

KBJ16360

HYD TUBE

1шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

4

155211A1

O-RING

1шт.

5

KBJ16370

HYD TUBE

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

162308A1

COLLAR

1шт.

8

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

9

150811A1

WASHER

1шт.

10

KRJ10900

SUPPORT

1шт.

11

166352A1

BOLT

2шт.

12

152085A1

COLLAR

1шт.

13

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

1шт.

14

KRJ29090

HYDRAULIC HOSE,19mm ID x 790mm L

4шт.

15

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
