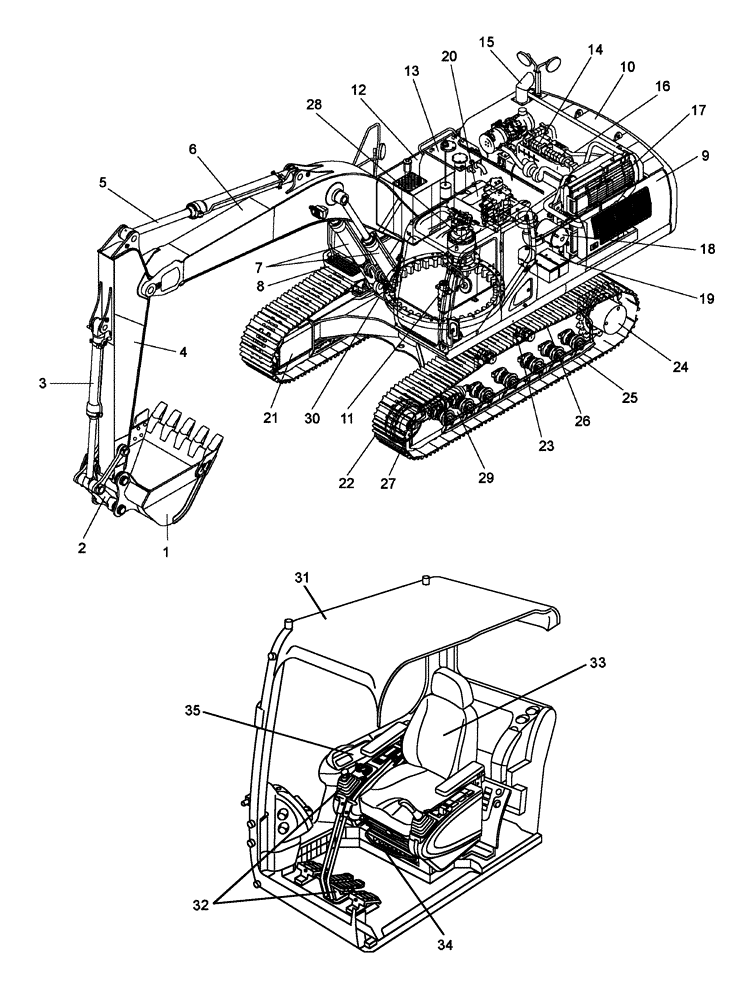

Запчасти Case CX300C (00-001-00[01]) - COMPONENT INDEX (00) - PICTORIAL INDEX

1

BUCKET - See Figure(s) 09-310-00 01 - 09-315-00 01

1шт.

2

BUCKET CONTROL See Figure(s) 09-300-00 01

1шт.

3

BUCKET CYLINDER - See Figure(s) 08-020-00 01 - 08-022-00 01, 08-303-00 01

1шт.

4

DIPPER - See Figure(s) 09-200-00 01 - 09-202-00 01

1шт.

5

DIPPER CYLINDER - See Figure(s) 08-018-00 01 - 08-019-01 01, 08-302-00 1, 08-302-01 01

1шт.

6

MONOBLOCK BOOM - See Figure(s) 09-100-00 01, 09-100-01 01

1шт.

7

BOOM CYLINDER - See Figure(s) 08-012-00 01 - 08-017-00 01, 08-300-00 01 - 08-301-01 01

1шт.

8

UPPERSTRUCTURE CHASSIS - See Figure(s) 09-002-00 01, 09-003-00 01

1шт.

9

COWLING - See Figure(s) 09-005-00 01 - 09-005-08 01

1шт.

10

COUNTERWEIGHT - See Figure(s) 09-004-00 01, 09-004-01 01

1шт.

11

SWING JOINT - See Figure(s) 07-010-00 01

1шт.

12

FUEL TANK, FUEL SYSTEM - See Figure(s) 03-001-00 01 - 03-042-01 01

1шт.

13

HYDRAULIC RESERVOIR, HYDRAULIC SYSTEM - See Figure(s) 08-001-00 01, 08-004-00 01 - 08-065-01 01

1шт.

14

HYDRAULIC PUMP - See Figure(s) 08-002-00 01, 08-002-01 01

1шт.

15

EXHAUST ENGINE - See Figure(s) 02-003-00 01

1шт.

16

ENGINE - See Figure(s) 02-001-00 01, 02-005-02 01 - 02-150-01 01, 03-040-01 01 - 03-042-01 01, And 04-060-01 01 - 04-826-01 01

1шт.

17

RADIATOR - See Figure(s) 02-004-00 01, 02-004-01 01

1шт.

18

AIR FILTRATION - See Figure(s) 02-002-00 01

1шт.

19

BATTERIES, ELECTRICAL SYSTEM - See Figure(s) 04-001-00 01 - 04-826-01 01

1шт.

20

CONTROL VALVE - See Figure(s) 08-200-00 01, 08-201-00 01

1шт.

21

UNDERCARRIAGE, HYDRAULIC CIRCUIT - See Figure(s) 05-001-00 01, 05-001-01 01

1шт.

22

TRACK FOOT STEP - See Figure(s) 05-006-00 01 - 05-008-00 01

1шт.

23

GUIDE, CHAIN - See Figure(s) 05-010-00 01, 05-011-00 01

1шт.

24

TRAVEL MOTOR AND REDUCTION GEAR - See Figure(s) 06-001-00 01, 06-010-00 01, 07-011-00 01, 07-012-00 01

1шт.

25

ROLLER LOWER - See Figure(s) 05-003-00 01

1шт.

26

ROLLER UPPER - See Figure(s) 05-002-00 01

1шт.

27

GUIDE PULLEY - See Figure(s) 05-004-00 01

1шт.

28

SWING MOTOR-DRIVE REDUCTION GEAR - See Figure(s) 06-002-00 01, 06-011-00 01, 08-220-00 01

1шт.

29

TENSION DAMPER - See Figure(s) 05-005-00 01

1шт.

30

SWING COMPONENTS, LUBRICATION CIRCUIT - See Figure(s) 09-001-00 01

1шт.

31

OPERATORS COMPARTMENT, CAB - See Figure(s) 04-011-00 01,04-012-00 01, And 09-029-00 01 - 09-031-00 01

1шт.

32

OPERATORS COMPARTMENT, LEVER, CONTROL - See Figure(s) 09-009-00 01

1шт.

33

OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING - See Figure(s) 09-018-00 01 - 09-022-00 01

1шт.

34

CAB AIR CONDITIONING - See Figure(s) 09-025-00 01 - 09-026-00 01

1шт.

35

SIDE INSTRUMENT PANEL - See Figure(s) 09-029-00 01, 09-029-01 01

1шт.
