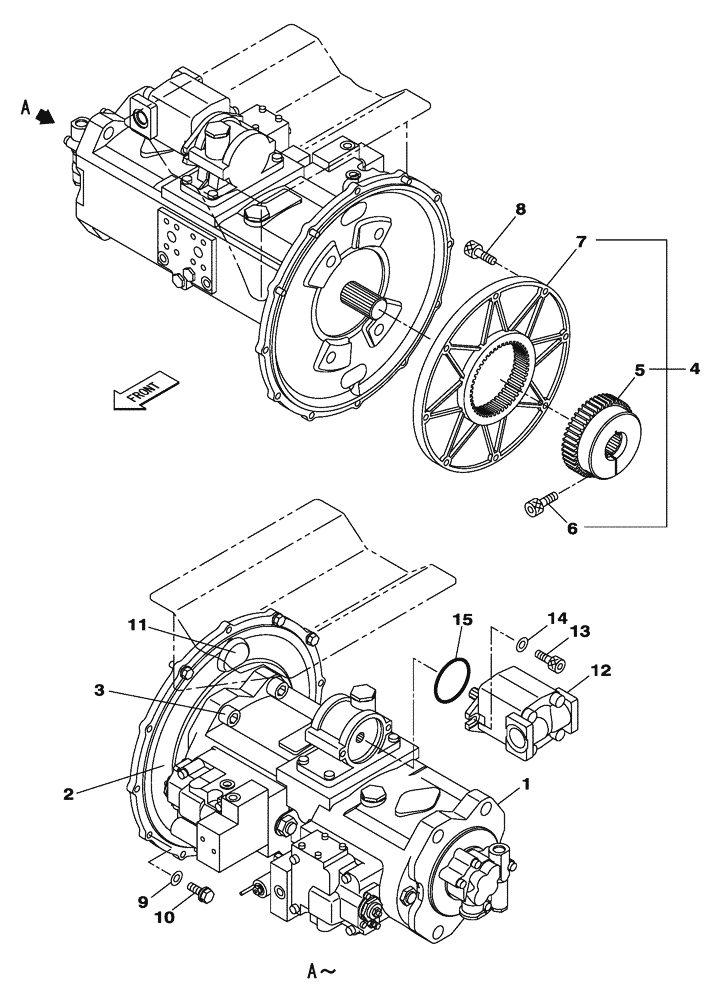

Запчасти Case CX300C (08-002-01[01]) - HYDRAULIC PUMP - COUPLING - OPTIONAL (08) - HYDRAULICS

1

KBJ14610

HYDRAULIC PUMP

1шт.

See Figure(s) 08-105-00-01 - 08-110-00 01

1шт.

2

KSJ2852

FLANGE

1шт.

3

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

4

KSJ2874

COUPLING FLANGE

1шт.

Include(s) 5 - 7

1шт.

5

KSJ2875

HUB

1шт.

6

108R016Y045R

BOLT

M16 x 45

1шт.

7

KSJ2666

COVER

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

9шт.

10

150409A1

WASHER

9шт.

11

KHJ2656

GROMMET

2шт.

12

KRJ10300

HYDRAULIC PUMP

2шт.

See Figure(s) 08-120-00 01

1шт.

12

KRJ10300R

REMAN-HYD PUMP

CX300C CRAWLER EXCAVATOR TIER 4 (NA) (3/11-)

2шт.

12

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

2шт.

13

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

14

150409A1

WASHER

2шт.

15

154697A1

O-RING

1шт.
