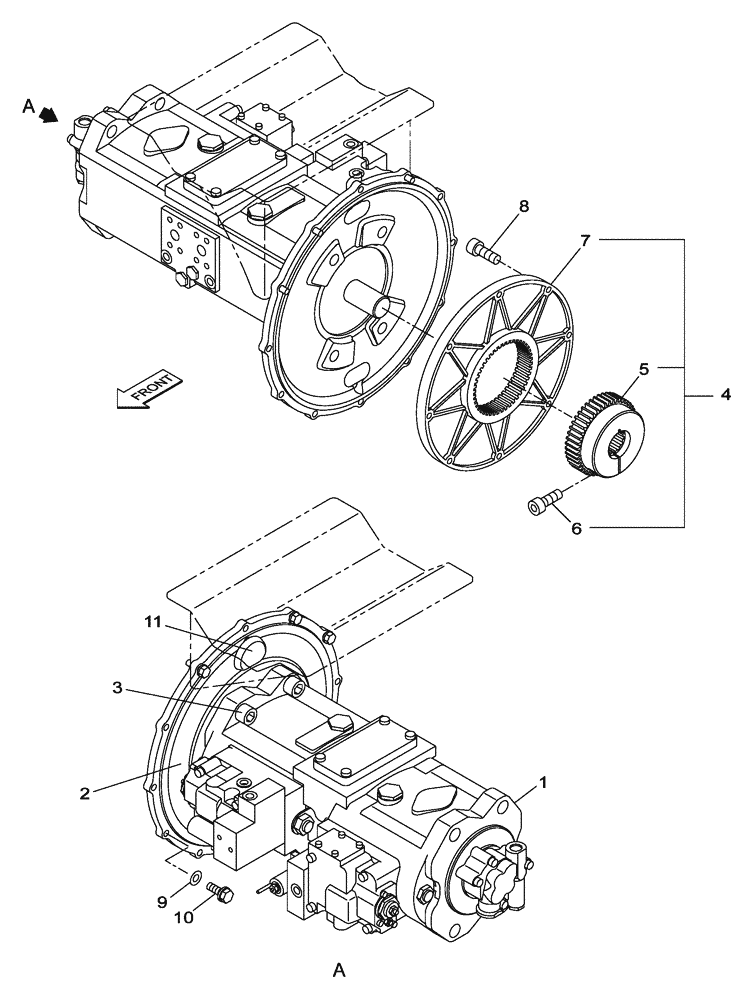

Запчасти Case CX300C (08-002-00[01]) - HYDRAULIC PUMP - COUPLING - STANDARD (08) - HYDRAULICS

1

KBJ14600

HYDRAULIC PUMP

1шт.

See Figure(s) 08-100-00 01 - 08-104-00 01

1шт.

1

KBJ14600R

REMAN-HYD PUMP

CX300C CRAWLER EXCAVATOR TIER 4 (NA), COUPLING - STANDARD (3/11-)

1шт.

1

KBJ14600C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KSJ2852

FLANGE

1шт.

3

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

4

KSJ2874

COUPLING FLANGE

1шт.

Include(s) 5 - 7

1шт.

5

KSJ2875

HUB

1шт.

6

108R016Y045R

BOLT

1шт.

7

KSJ2666

COVER

1шт.

8

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

9шт.

10

150409A1

WASHER

9шт.

11

KHJ2656

GROMMET

2шт.
