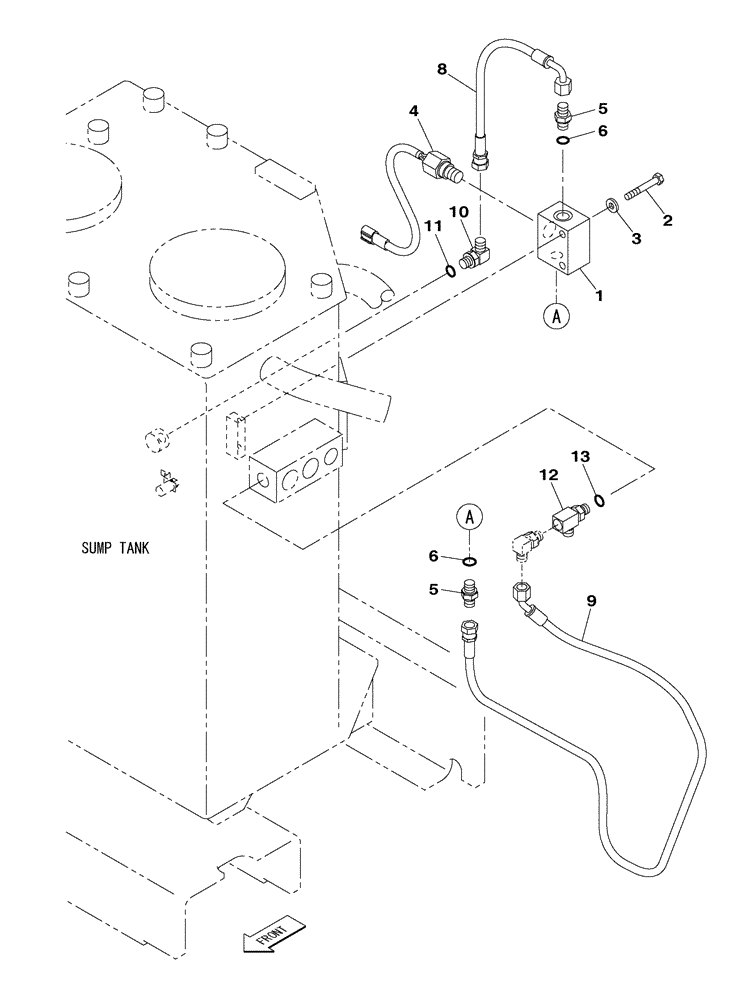

Запчасти Case CX300C (08-001-01[01]) - HYDRAULIC RESERVOIR - OPTIONAL (08) - HYDRAULICS

1

KHJ11730

MANIFOLD VALVE

1шт.

2

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

3

153081A1

WASHER

2шт.

4

KHR14470

PRESSURE SWITCH

, Serial Range: -NCSAN1161

1шт.

4

KHR32870

SENSOR

, Start Serial: NCSAN1162

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

Include(s) 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

KHJ2292

HOSE

280 mm

1шт.

9

KHJ15120

HYDRAULIC HOSE

1350 mm

1шт.

10

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

Include(s) 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KHJ2773

TEE

1шт.

Include(s) 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
