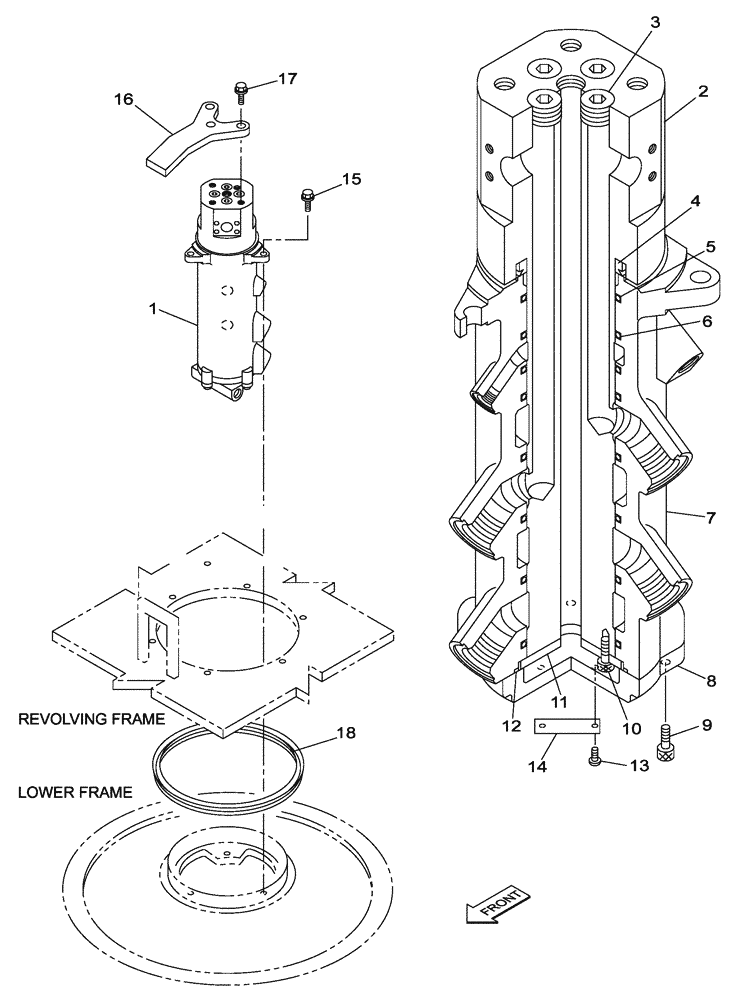

Запчасти Case CX300C (07-010-00[01]) - SWING JOINT (08) - HYDRAULICS

1

KSA1305

HYDRAULIC SWIVEL

1шт.

Include(s) 2 - 14

1шт.

1

KSA1305R

REMAN-HYDRAULIC SWIV

CX300C CRAWLER EXCAVATOR TIER 4 (NA) (3/11-)

1шт.

1

KSA1305C

CORE-HYDRAULIC SWIV

Return Number

1шт.

2

KSA1303

SHAFT

1шт.

Include(s) 3

1шт.

3

150829A1

PLUG

4шт.

4

KTA1092

SHAFT SEAL

1шт.

5

KHA10120

O-RING

1шт.

6

KTA1093

SEALING RING

SEALRING

6шт.

7

KSA1304

ROTOR

1шт.

8

KTA1095

COVER

1шт.

9

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

10

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

11

KTA1096

PLATE

1шт.

12

154761A1

O-RING,119.4mm ID x 3.1mm Width

1шт.

13

NSS

NOT SOLD SEPARAT

Screw

2шт.

14

NSS

NOT SOLD SEPARAT

Nameplate

1шт.

15

105R012Y045R

BOLT

M12 x 45

3шт.

16

KSA1140

SUPPORT

1шт.

17

166373A1

BOLT,Sems, M16 x 40mm

M16 x 40

3шт.

18

KRA11090

SEALING RING

SEALRING

1шт.
