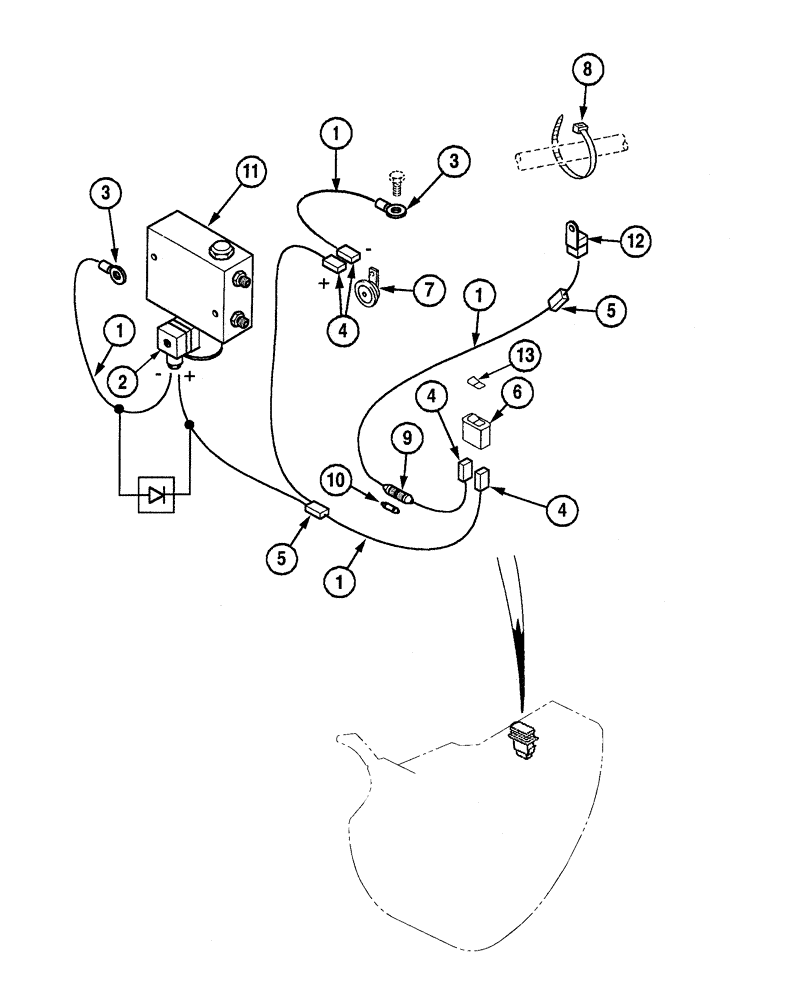

Запчасти Case CX250C (04-035[00]) - QUICK COUPLER - MULTI-FIT - ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

84518712

WIRE HARNESS

1шт.

Include(s) 2 - 5, 9, 10, 12

1шт.

2

378263A1

BASE

1шт.

3

378251A1

CONNECTOR, ELEC

CONNECTOR

2шт.

4

378252A1

CONNECTOR, ELEC

CONNECTOR

4шт.

5

378254A1

CONNECTOR, ELEC

CONNECTOR

2шт.

6

84515900

COMMUTATOR

1шт.

84518713

WIRE HARNESS

To be used when you replace the switch already installed

1шт.

7

378255A1

BUZZER

24V

1шт.

8

N51946

CLAMP

275 mm

1шт.

9

378258A1

SUPPORT

1шт.

10

84515330

FUSE

1шт.

11

F5343342

SOLENOID VALVE

1шт.

See Figure(s) 04-037-00 01, 08-145-00 01

1шт.

12

378253A1

CONNECTOR, ELEC

CONNECTOR

1шт.

13

418688A1

DECAL

1шт.
