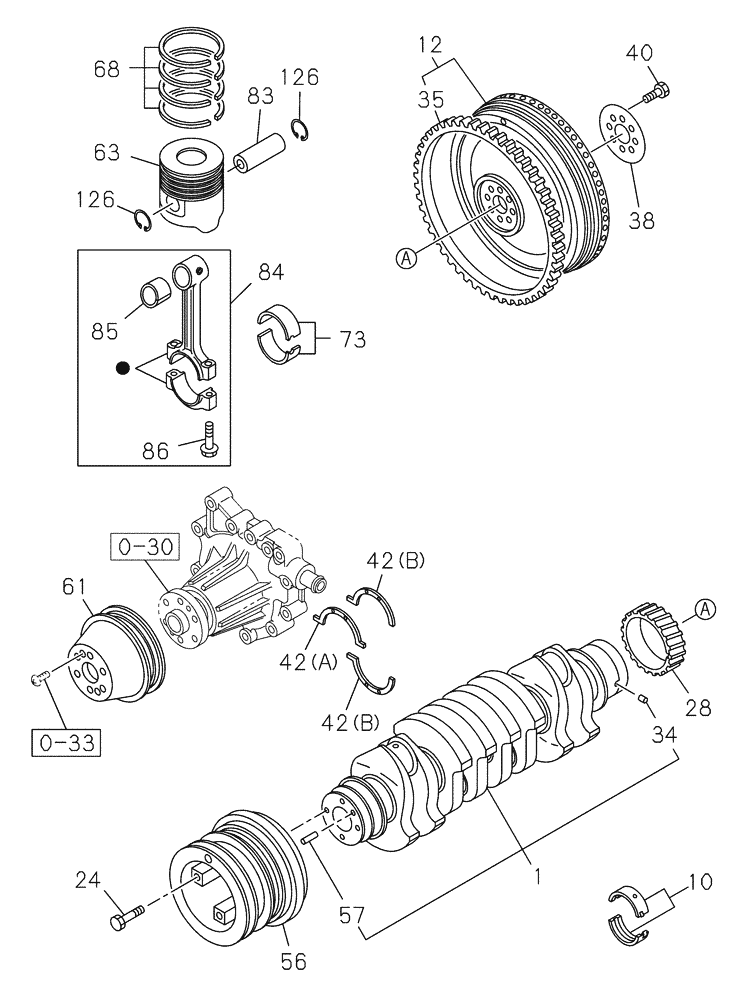

Запчасти Case CX250C (02-011[00]) - PISTONS AND CRANKSHAFT (02) - ENGINE

0-30

84387963

WATER PUMP

1шт.

See Figure(s) 02-030-01 01

1шт.

0-30

84387963R

REMAN-WATER PUMP

CX250C CRAWLER EXCAVATOR TIER 4 (NA)

1шт.

0-30

84387963C

CORE-WATER PUMP

Return Number

1шт.

0-33

289760A1

SCREW

1шт.

See Figure(s) 02-033-01 01

1шт.

1

87595954

CRANKSHAFT

1шт.

Include(s) 34, 57

1шт.

10

87379566

SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.522-2.526mm Thk

Blue

5шт.

10

87379569

SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.518-2.522mm Thk

Black

5шт.

10

87379572

SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.514-2.518mm Thk

Brown

5шт.

12

87629465

ENGINE FLYWHEEL

1шт.

Include(s) 35

1шт.

24

87595958

BOLT

4шт.

28

87378184

IDLER GEAR

1шт.

34

419830A1

SMALL PIN

1шт.

35

288796A1

RING GEAR

1шт.

38

438140A1

WASHER

1шт.

40

87595960

BOLT

8шт.

42a

84388014

THRUST WASHER

1шт.

42b

84388016

THRUST WASHER

2шт.

56

87595996

PULLEY

1шт.

57

87595999

PIN

2шт.

61

84389444

PULLEY

1шт.

63

84369209

PISTON

4шт.

68

87378526

PISTON RINGS KIT

4шт.

73

87484075

BEARING LINER

BEARING, CON. ROD Green

4шт.

73

87484055

BEARING LINER

BEARING, CON. ROD Yellow

4шт.

83

84369212

PISTON PIN

4шт.

84

87484038

PITMAN ASSY.

4шт.

Include(s) 85, 86

1шт.

85

84238575

BUSHING

4шт.

86

84389381

BOLT

8шт.

126

437874A1

CIRCLIP

8шт.
