(88-100-02[00]) - DIA KIT - CAB GUARD - WINDSHIELD, LOWER

Запчасти Case CX250C (88-100-02[00]) - DIA KIT - CAB GUARD - WINDSHIELD, LOWER (18) - MISCELLANEOUS

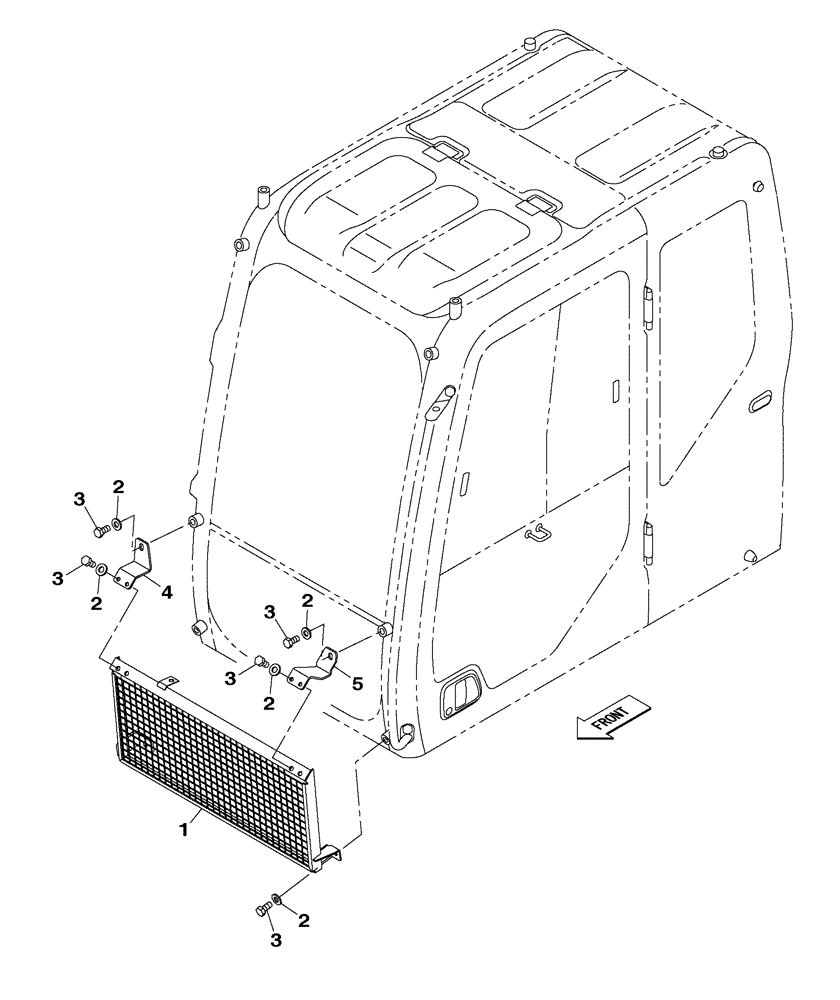

Схема запчастей Case CX250C - (88-100-02[00]) - DIA KIT - CAB GUARD - WINDSHIELD, LOWER (18) - MISCELLANEOUS
2
2
3
4
3
2
2
3
3
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

KG0HN485-00

CONSTRUCTION DIA

DIA KIT, Windshield, Lower

1шт.

1

KHN27890

GUARD

1шт.

2

150811A1

WASHER

8шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

8шт.

4

KHN27920

BRACKET

1шт.

5

KHN27930

BRACKET

1шт.
