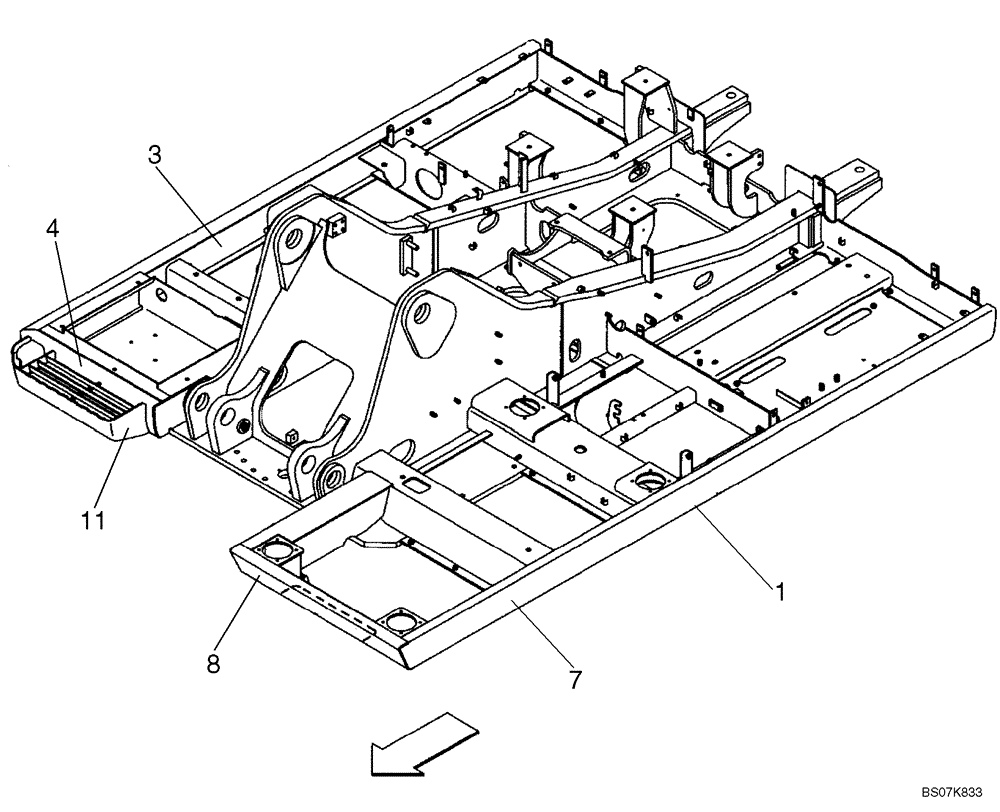

Запчасти Case CX250C (09-002[01]) - TURNTABLE, SIDE RAIL (13) - CHASSIS/ATTACHMENTS

1

KBB12250

FRAME

Revolving, Replaces KBB11530

1шт.

3

KBB11100

SIDE MEMBER,3510mm L

PLATE FORMED, RIGHT SIDE, May Need To Be Cut To Length, Replaces KBB10400

1шт.

4

KRB10330

SIDE MEMBER

PLATE FORMED, RIGHT FRONT, May Need To Be Cut To Length

1шт.

7

KBB11060

SIDE MEMBER,4098mm L

PLATE FORMED, LEFT SIDE, May Need To Be Cut To Length, Replaces KBB11040

1шт.

8

KRB12700

SIDE MEMBER

PLATE FORMED, LEFT FRONT

1шт.

11

KRB13220

STEP

STEP

1шт.
