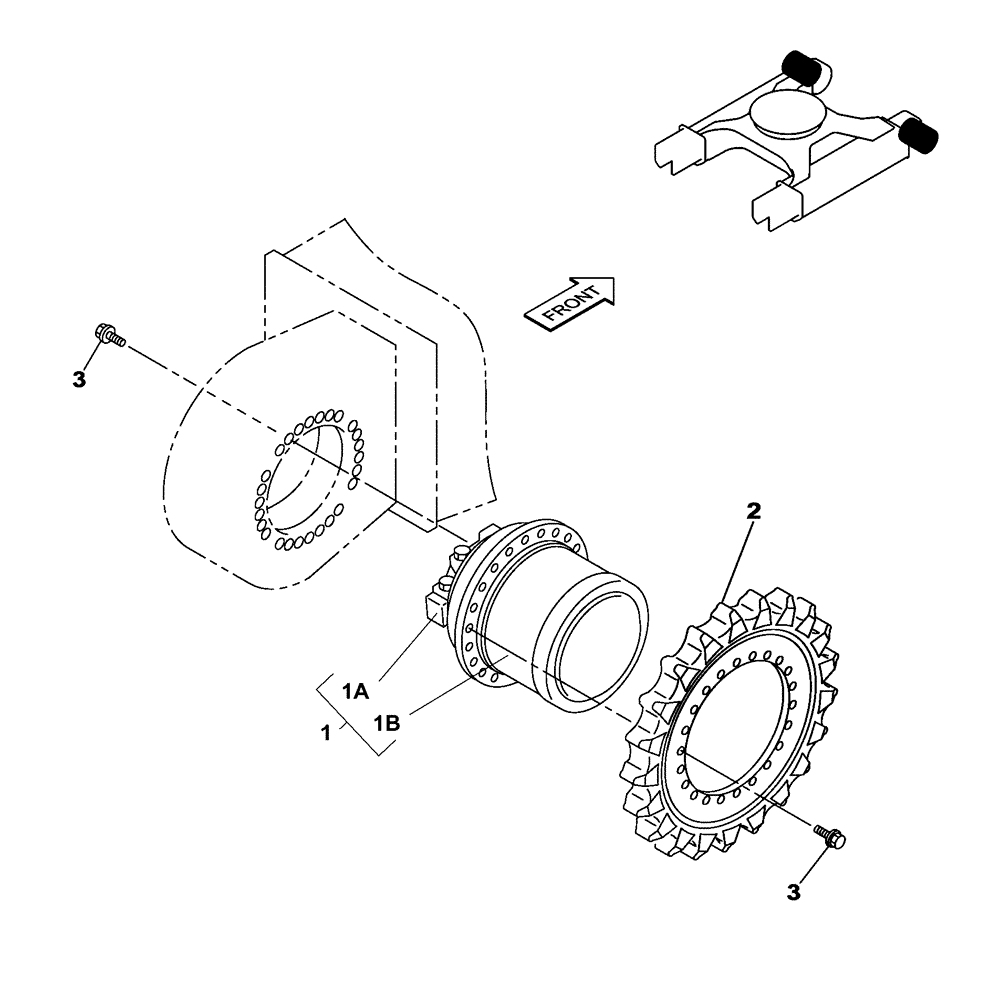

Запчасти Case CX250C (06-001[01]) - TRAVEL MOTOR AND REDUCTION GEAR -CX250C LR (11) - TRACKS/STEERING

1

KBA13690

HYDRAULIC MOTOR

2шт.

Include(s) 1A, 1B

1шт.

1

KBA13690R

REMAN-MOTO REDUCTION

CX250C CRAWLER EXCAVATOR TIER 4 (NA)

2шт.

1

KBA13690C

CORE-MOTO-REDUCTION UNIT

Return Number

2шт.

1a

REF

INSTRUCTION

1шт.

See Figure(s) 07-011-00 01, 07-012-00 01

1шт.

1b

REF

INSTRUCTION

1шт.

See Figure(s) 06-010-00 01

1шт.

2

KRA12900

SPROCKET

2шт.

3

167584A1

BOLT,Sems, M16 x 60mm

M16 x 60

100шт.
