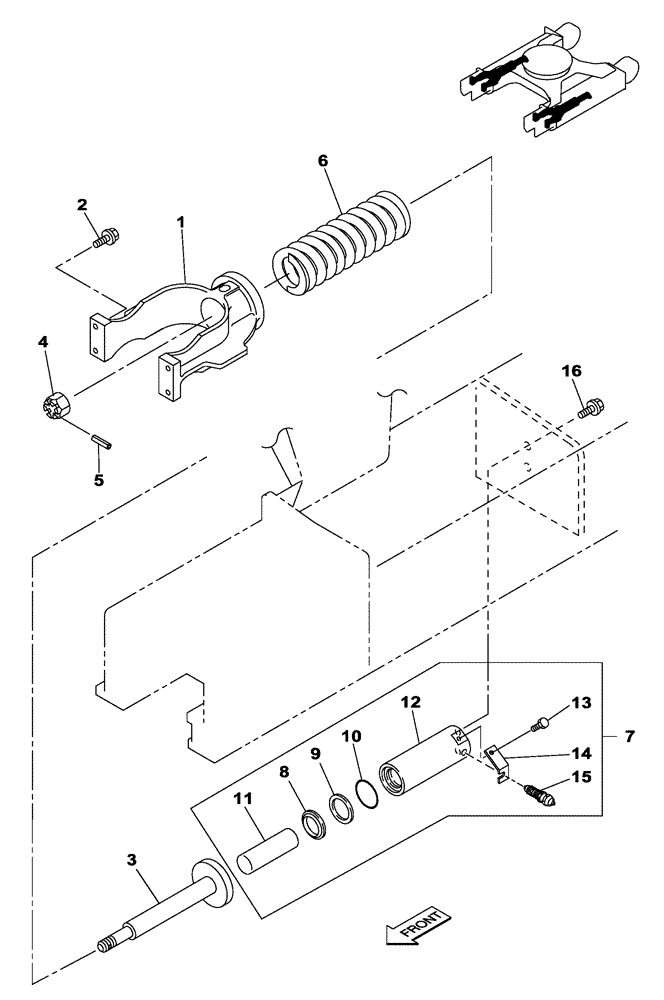

Запчасти Case CX250C (05-004[00]) - TENSION DAMPER (11) - TRACKS/STEERING

1

KRA14080

FORK

2шт.

2

165929A1

BOLT,Sems, M16

M16 x 50

8шт.

3

KRA1606

ROD

2шт.

4

283647A1

SLOTTED NUT

2шт.

5

738-1880

LOCK PIN,8mm OD x 80mm L, Slotted

2шт.

6

KRA10170

TENSION SPRING

L=636mm

2шт.

6

KBA13900

TENSION SPRING

L=625mm

2шт.

7

KBA12890

CYLINDER

2шт.

Include(s) 8 - 15

1шт.

8

159661A1

SEAL

1шт.

9

KBA12900

GASKET

1шт.

10

370A0650Z

SNAP RING

1шт.

11

KBA12910

PISTON ROD

1шт.

12

KBA12920

HYD CYL SLEEVE

1шт.

13

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

1шт.

14

KBA10370

SUPPORT

1шт.

15

150107A1

LUBE NIPPLE

1шт.

16

167584A1

BOLT,Sems, M16 x 60mm

M16 x 60

4шт.
