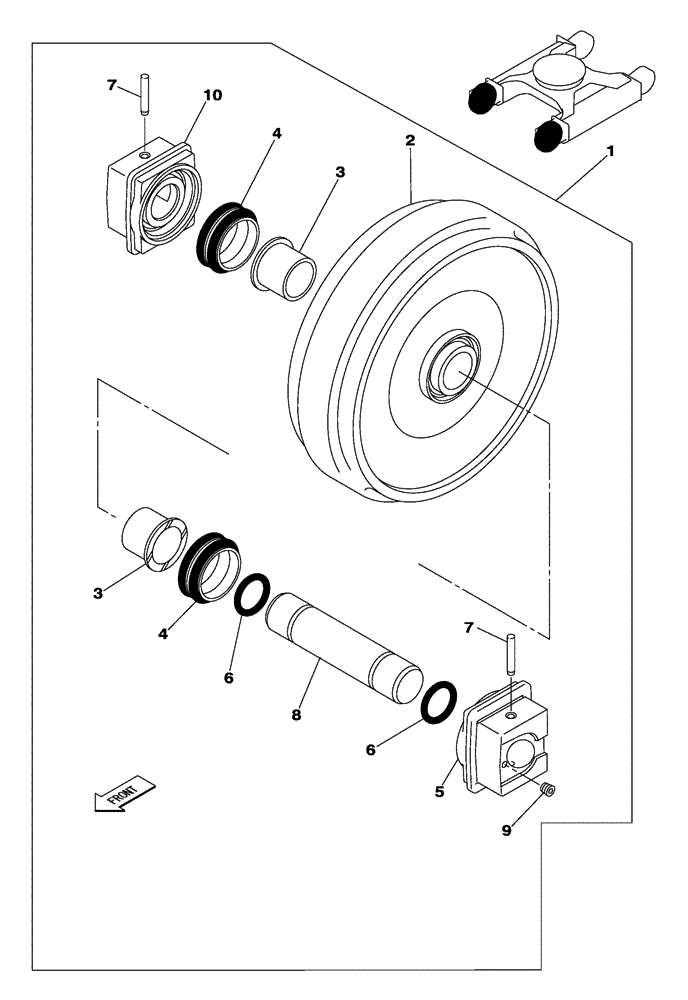

Запчасти Case CX250C (05-003[00]) - GUIDE PULLEY (11) - TRACKS/STEERING

1

KRA14070

FLEETING PULLEY

, Serial Range: -NCSAM1213

2шт.

Include(s) 2 - 10

1шт.

1

KBA14070

FLEETING PULLEY

, Serial Range: NCSAM1214-NDSAM1306

2шт.

Include(s) 2 - 10

1шт.

1

KBA15340

ROLLER

, Start Serial: NDSAM1307

2шт.

Include(s) 2 - 10

1шт.

2

KRA1768

IDLER

, Serial Range: -NDSAM1306

1шт.

2

KBA14110

ROLLER

, Start Serial: NDSAM1307

1шт.

3

160427A1

RING,65mm ID x 92mm OD x 69mm L

, Serial Range: -NDSAM1306

2шт.

3

KBA14120

BUSHING

, Start Serial: NDSAM1307

2шт.

4

160397A1

SEAL,95mm ID x 114mm OD x 32mm Thk

, Serial Range: -NDSAM1306

2шт.

4

151126A1

SEAL

, Start Serial: NDSAM1307

2шт.

5

KRA14090

HUB

, Serial Range: -NDSAM1306

1шт.

5

KBA14090

HUB

, Start Serial: NDSAM1307

1шт.

6

154639A1

O-RING

, Serial Range: -NDSAM1306

2шт.

6

150194A1

O-RING

, Start Serial: NDSAM1307

2шт.

7

KRA14110

PIN

2шт.

8

KRA14120

ROLLER SHAFT

, Serial Range: -NDSAM1306

1шт.

8

KBA14080

ROLLER SHAFT

, Start Serial: NDSAM1307

1шт.

9

150821A1

PLUG

, Serial Range: -NDSAM1306

1шт.

9

KHJ0300

PLUG

, Start Serial: NDSAM1307

1шт.

10

KRA14100

HUB

, Serial Range: -NDSAM1306

1шт.

10

KBA14100

HUB

, Start Serial: NDSAM1307

1шт.
