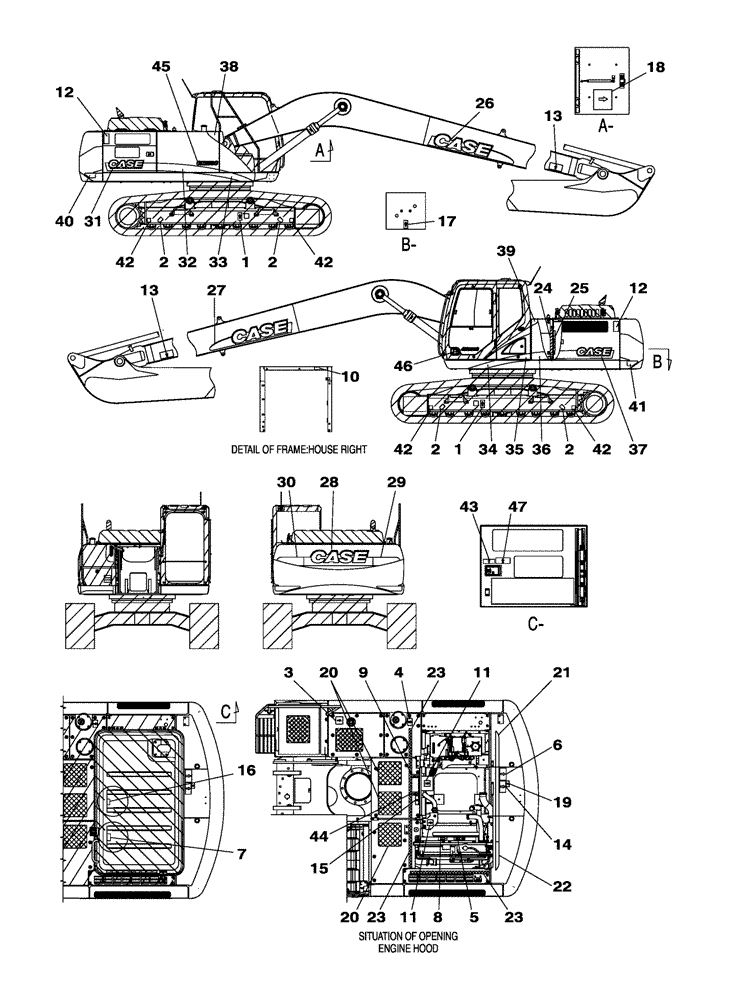

Запчасти Case CX250C (09-053A[00]) - DECALS - CX250C LR (09) - CHASSIS/ATTACHMENTS

1

KHP17390

ADHESIVE

2шт.

2

H7947565

DECAL

4шт.

3

KHP11700

WARNING DECAL

1шт.

4

KHP18120

LABEL

1шт.

5

168101A1

DECAL

1шт.

6

168110A1

DECAL

1шт.

7

168109A1

DECAL

1шт.

8

168111A1

DECAL

1шт.

9

168112A1

DECAL

1шт.

10

KHP17410

ADHESIVE

1шт.

11

KHP18130

LABEL

2шт.

12

KHP17510

DECAL

2шт.

13

L4051598

DECAL

2шт.

14

KHP12220

DECAL

1шт.

15

KHP17980

LABEL

1шт.

16

KHP12230

DECAL

1шт.

17

KHP17430

WARNING DECAL

1шт.

18

KRP11512

DECAL,Lub Chart

1шт.

19

KHP13160

DECAL

1шт.

20

KHP1259

ANTI-SKID STRIP

3шт.

21

KRP11460

ADHESIVE STRIP

1шт.

22

KRP11470

ADHESIVE STRIP

1шт.

23

KHP1217

DECAL

1шт.

24

KHP0973

ADHESIVE STRIP

1шт.

25

KHP1185

ADHESIVE STRIP

1шт.

26

84517113

DECAL

Boom "Case" (Replaced KRP2334)

2шт.

27

84517113

DECAL

Boom "Case" (Replaced KRP2335)

1шт.

28

84517111

DECAL

Counterweight "Case" (Replaced KRP12480)

1шт.

29

KRP12490

DECAL

NSS (was KRP12490)

1шт.

30

KRP12500

DECAL

NSS (was KRP12500)

1шт.

31

KBP11330

DECAL

NSS (was KBP11330)

1шт.

32

KBP11340

DECAL

NSS (was KBP11310)

1шт.

33

KRP12530

DECAL

NSS (was KRP12530)

1шт.

34

KRP12540

DECAL

NSS (was KRP12540)

1шт.

35

KBP13610

DECAL

NSS (was KBP13610)

1шт.

36

KBP13620

DECAL

NSS (was KBP13620)

1шт.

37

KBP13970

TAPE

NSS (was KBP13970)

1шт.

38

KHP12870

DECAL

1шт.

39

KHP17550

DECAL

1шт.

40

NA

NOT SERVICED

EU Only

1шт.

41

NA

NOT SERVICED

EU Only

1шт.

42

KHP15200

DECAL

4шт.

43

KHP15770

DECAL

1шт.

44

KHP17440

ADHESIVE

Warning Label

1шт.

45

84573937

DECAL

CX250C (Replaced KBP13590)

1шт.

46

84573937

DECAL

CX250C (Replaced KBP13960)

1шт.

47

KHP17590

LABEL

1шт.

KHP18060

LABEL

Warning, (On Front Panel of Toolbox)

1шт.

84495413

DECAL,220mm

(CASE EAGLE 220mm)

2шт.

84468361

DECAL,436mm x 27mm H

(CASECE.COM, 475mm)

1шт.
