(09-038[02]) - DIPPER - 8.00 M - BRACKET - WITH OPTION AND SAFETY VALVE - CX250C LR

Запчасти Case CX250C (09-038[02]) - DIPPER - 8.00 M - BRACKET - WITH OPTION AND SAFETY VALVE - CX250C LR (09) - CHASSIS/ATTACHMENTS

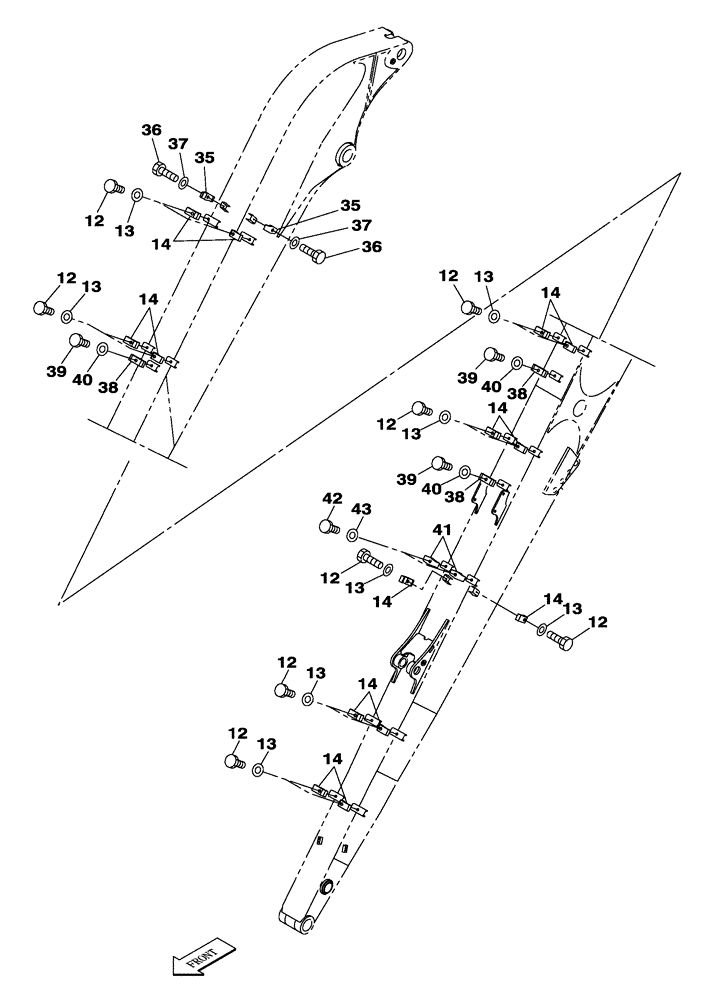

Схема запчастей Case CX250C - (09-038[02]) - DIPPER - 8.00 M - BRACKET - WITH OPTION AND SAFETY VALVE - CX250C LR (09) - CHASSIS/ATTACHMENTS
14
13
14
40
37
39
13
14
12
42
14
37
13
12
35
38
36
13
12
13
35
43
14
36
40
14
13
12
13
12
38
39
12
14
12
38
13
39
12
14
40
41
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

12

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

14шт.

13

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

14шт.

14

150777A1

COLLAR

14шт.

35

151486A1

CLAMP BRACKET

2шт.

36

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

37

150811A1

WASHER

2шт.

38

159742A1

COLLAR

3шт.

39

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

3шт.

40

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

3шт.

41

151486A1

CLAMP BRACKET

2шт.

42

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

43

150811A1

WASHER

2шт.

Выбрано товаров: 12
