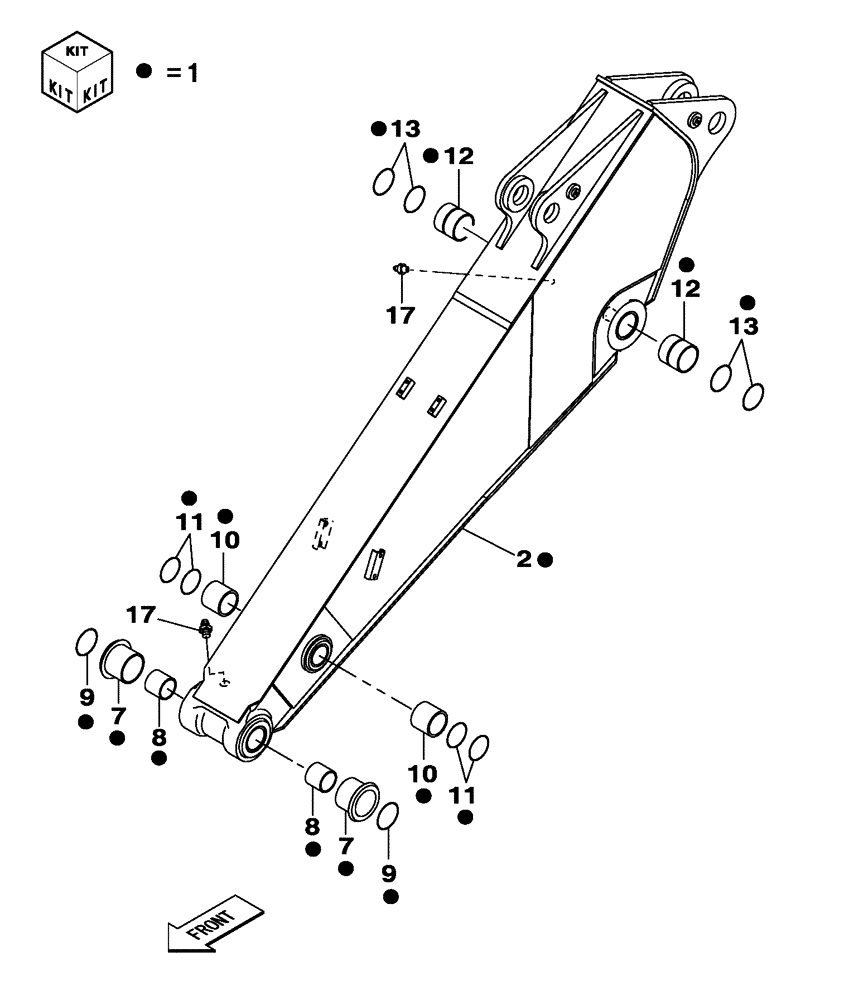

Запчасти Case CX250C (09-036[00]) - DIPPER - 2.50 M (09) - CHASSIS/ATTACHMENTS

1

KBV23080

DIPPER

Short 2.50 M

1шт.

Include(s) 2, 7 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

7

KBV17370

BUSHING

2шт.

8

KBV14210

BUSHING

2шт.

9

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

2шт.

10

KBV1359

SELF LUB RING

2шт.

11

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

4шт.

12

KBV1360

SELF LUB RING

2шт.

13

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

4шт.

17

153630A1

LUBE NIPPLE

3шт.
