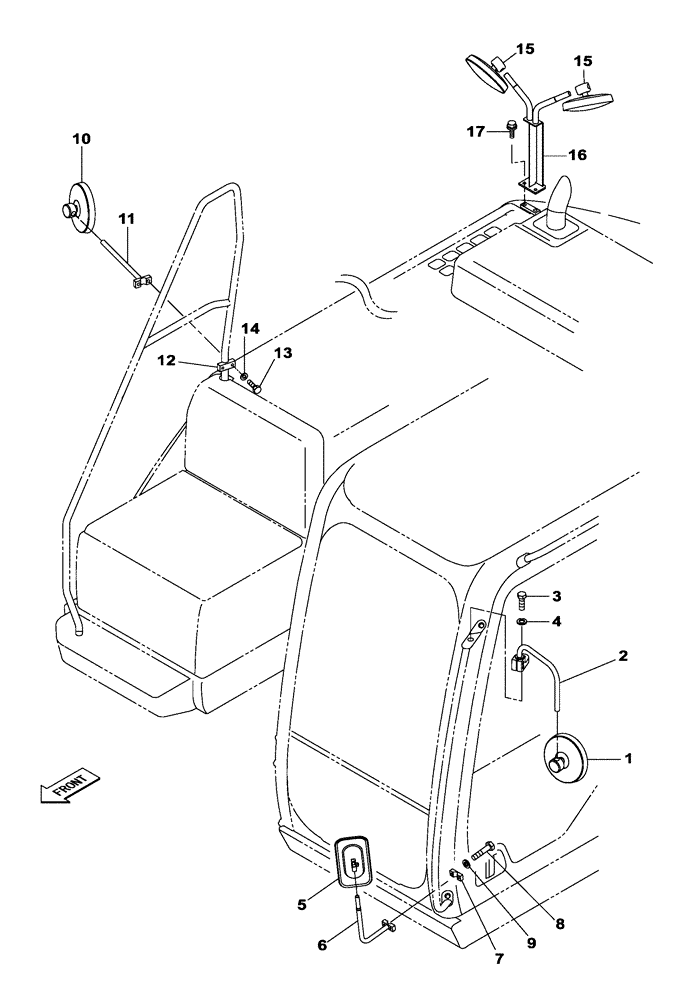

Запчасти Case CX250C (09-029[03]) - BACK VIEW MIRRORS (09) - CHASSIS/ATTACHMENTS

1

KHP15130

REAR VIEW MIRROR

1шт.

2

KHP11350

SUPPORT

1шт.

3

KHP15020

BOLT,Hex

1шт.

4

157528A1

WASHER

1шт.

5

KHP13190

REAR VIEW MIRROR,166mm x 330mm

,, Serial Range: -NDSAM1195

1шт.

6

KHP14990

MIRROR ARM

,, Serial Range: -NDSAM1195

1шт.

7

169338A1

CLAMP

,, Serial Range: -NDSAM1195

1шт.

8

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

,, Serial Range: -NDSAM1195

2шт.

9

892-11010

LOCK WASHER,M10

., Serial Range: -NDSAM1195

2шт.

10

KHP15130

REAR VIEW MIRROR

1шт.

11

KHP15170

STAY

1шт.

12

169338A1

CLAMP

1шт.

13

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

KHP15130

REAR VIEW MIRROR

2шт.

16

KHP15000

MIRROR ARM

,, Serial Range: -NDSAM1199

1шт.

16

KHP20380

STAY

,, Start Serial: NDSAM1200

1шт.

17

166352A1

BOLT

2шт.
