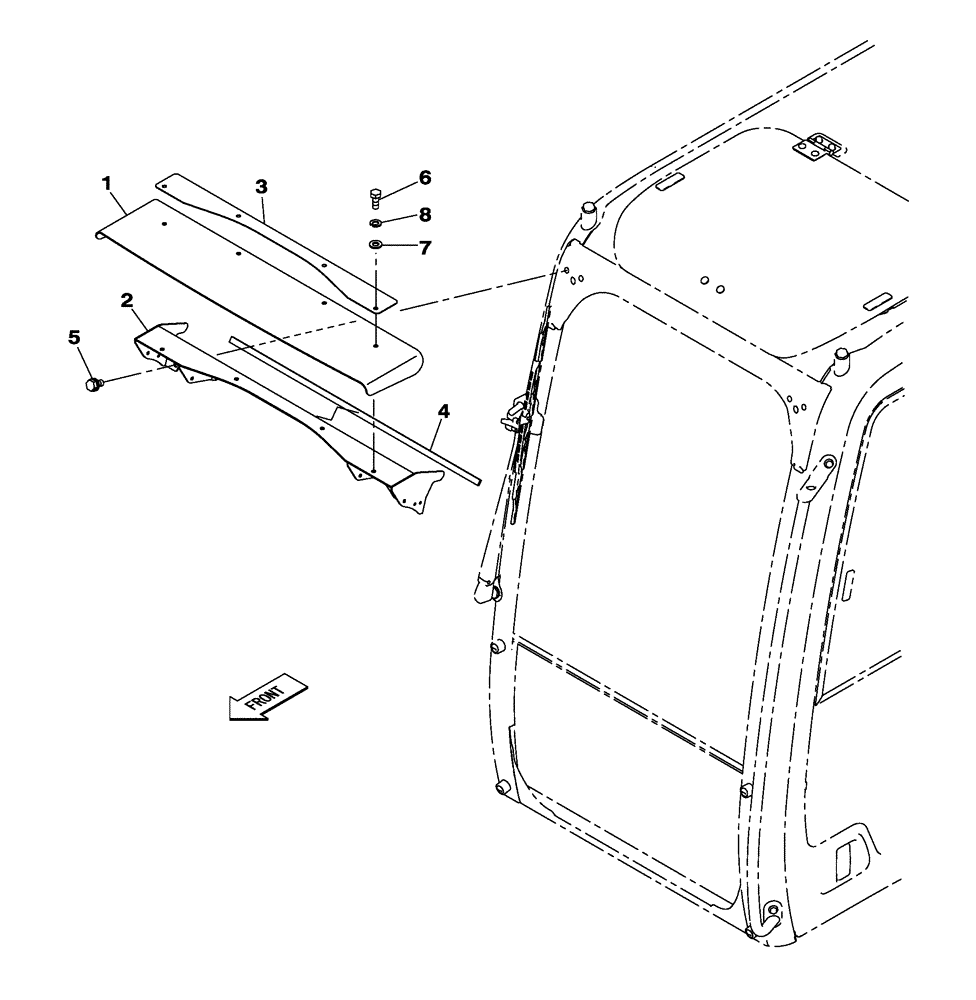

Запчасти Case CX250C (09-028[00]) - CAB - VISOR (09) - CHASSIS/ATTACHMENTS

1

KHN26780

DEFLECTOR

1шт.

2

KHN26791

BRACKET, SUPPORTING

1шт.

3

KHN26800

HOLDER

1шт.

4

KHJ13590

SEAL

4шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

183-108VR

SPRING WASHER

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

Not Illustraded

1шт.
