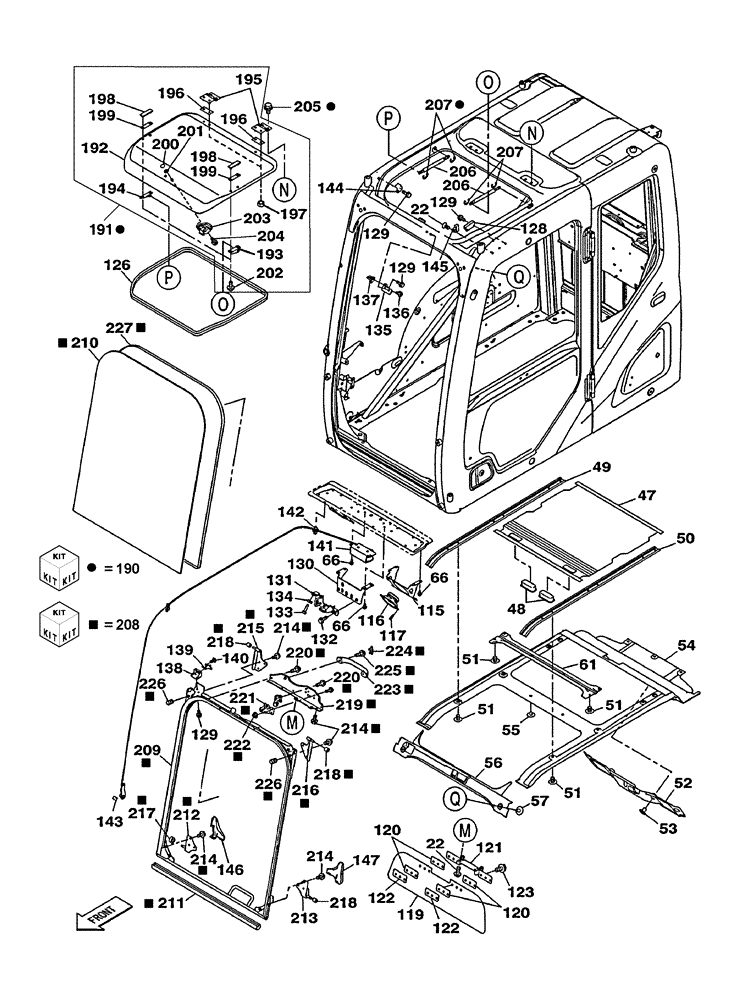

Запчасти Case CX250C (09-024[00]) - CAB - WINDSHIELD - OPENING ROOF - SUN VISOR (09) - CHASSIS/ATTACHMENTS

22

NSS

NOT SOLD SEPARAT

EU Only

5шт.

47

KHN14580

SUN VISOR

1шт.

48

KHN14590

HANDLE

2шт.

49

KHN25480

SLIDE

1шт.

50

KHN25500

SLIDE

1шт.

51

KHN14570

SCREW

6шт.

52

KHN25530

SUPPORT

1шт.

53

KHN25920

CLIP

8шт.

54

KHN25420

PAD

1шт.

55

KHN14640

CLIP

11шт.

56

KHN25520

SUPPORT

1шт.

57

KHN25890

CLIP

2шт.

61

KHN14680

BRACKET

1шт.

66

KHN18870

BOLT

20шт.

115

KHN25650

BRACKET, SUPPORTING

2шт.

116

KHR3366

SPEAKER

2шт.

117

KHN2716

SCREW,Spcl

8шт.

119

NSS

NOT SOLD SEPARAT

EU Only

1шт.

120

NSS

NOT SOLD SEPARAT

EU Only

4шт.

121

NSS

NOT SOLD SEPARAT

EU Only

1шт.

122

NSS

NOT SOLD SEPARAT

EU Only

2шт.

123

NSS

NOT SOLD SEPARAT

EU Only

6шт.

126

KHN25580

SEAL

1шт.

128

KHN15940

STOP LOCK

1шт.

129

KHN15690

BOLT

7шт.

130

KHN25300

BRACKET, SUPPORTING

1шт.

131

KHN25380

STRIKER

STRIKER

1шт.

132

KHN18930

BOLT

2шт.

133

KHN15990

STOP LOCK

1шт.

134

KHN19030

NUT

1шт.

135

KHN25640

BRACKET, SUPPORTING

1шт.

136

KHN2756

BOLT,Spcl

2шт.

137

KHN25670

STRIKER

STRIKER

1шт.

138

KHN25660

BRACKET, SUPPORTING

1шт.

139

KHN26000

SWITCH

1шт.

140

KHN25960

SCREW

2шт.

141

KHN25700

SPRING

, complete with cable

1шт.

142

161381A1

COLLAR

1шт.

143

KHN15980

STOP LOCK

2шт.

144

KHN25540

CAP

1шт.

145

KHN25550

CAP

1шт.

146

KHN16220

COVER

1шт.

147

KHN16230

COVER

1шт.

190

KHN13700

HATCH

1шт.

Include(s) 191 - 207

1шт.

191

KHN15180

HATCH

1шт.

Include(s) 192 - 204

1шт.

192

KHN15190

CAB GLASS

1шт.

193

KHN15200

BRACKET

1шт.

194

KHN15210

BRACKET

1шт.

195

KHN15220

HINGE

2шт.

196

KHN15230

RETAINER

2шт.

197

KHN15240

SPECIAL NUT

4шт.

198

KHN15250

RETAINER

2шт.

199

KHN15260

PLATE

2шт.

200

KHN15270

RETAINER

2шт.

201

KHN15280

RETAINER

2шт.

202

KHN15290

SCREW

4шт.

203

KHN15300

HANDLE

1шт.

204

KHN15310

SCREW

2шт.

205

KHN15320

BOLT,Spcl

4шт.

206

KHN2827

GAS STRUT

2шт.

207

KHN2828

CIRCLIP

4шт.

208

KHN25210

WINDOW ASSY

1шт.

Include(s) 209 - 227

1шт.

209

KHN25220

WINDOW FRAME

1шт.

210

KHN25620

WINDSHIELD

1шт.

211

KHN25750

SEAL

1шт.

212

KHN15670

STAY

1шт.

213

KHN25770

STAY

1шт.

214

KHN15690

BOLT

13шт.

215

KHN25680

STAY

1шт.

216

KHN25690

STAY

1шт.

217

KHN15800

ROLLER

1шт.

218

KHN25600

ROLLER

3шт.

219

KHN25280

COVER

1шт.

220

KHN28230

BOLT

5шт.

221

KHN25410

LOCK

1шт.

222

KHN25980

NUT

2шт.

223

KHN25870

HANDLE

1шт.

224

KHN25880

CAP

2шт.

225

KHN25770

STAY

2шт.

226

KHN15830

STOP LOCK

2шт.

227

KHN19340

SEAL

1шт.
