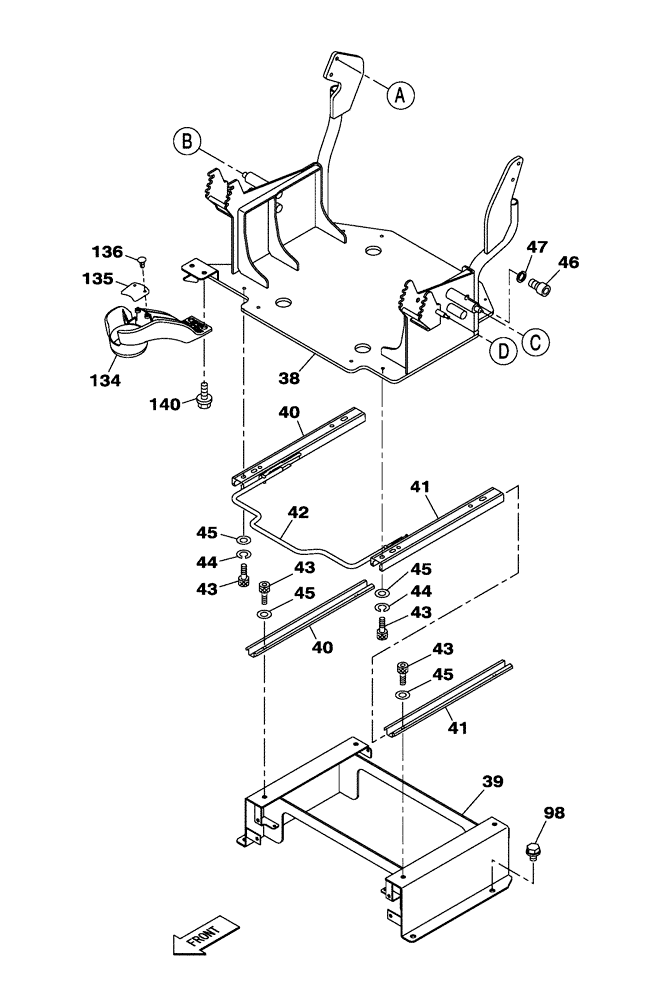

Запчасти Case CX250C (09-016[00]) - OPERATORS COMPARTMENT - BOX - GUIDE, SLIDE (09) - CHASSIS/ATTACHMENTS

38

KHN24070

BASE PLATE

1шт.

39

KHN24080

SLIDE

1шт.

40

KHN13420

SLIDE GUIDE

1шт.

41

KHN13430

SLIDE GUIDE

1шт.

42

KHN24050

LEVER

1шт.

43

108R008Y016R

BOLT

8шт.

44

183-108VR

SPRING WASHER

4шт.

45

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

46

862-12020

HEX SOC SCREW,M12 x 20mm, Cl 12.9

1шт.

47

892-11012

LOCK WASHER,M12

1шт.

98

166346A1

BOLT,Sems, M10

4шт.

134

KHN23220

HOLDER

1шт.

135

KHN14760

PLATE

1шт.

136

KHN2470

CLIP

2шт.

140

KHN17270

BOLT,Spcl

2шт.
