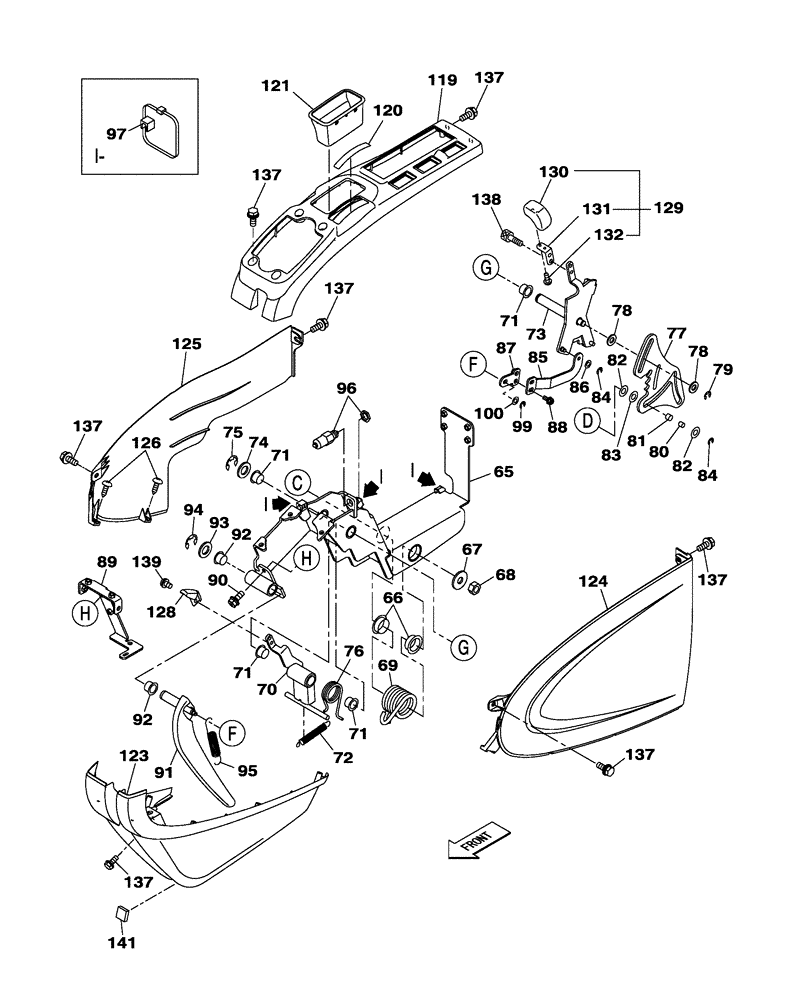

Запчасти Case CX250C (09-014[00]) - OPERATORS COMPARTMENT - HAND CONTROL ARM, LEFT (09) - CHASSIS/ATTACHMENTS

65

KHN24110

SUPPORT

1шт.

66

KHN2261

BUSHING

2шт.

67

151161A1

WASHER

1шт.

68

162R012VR

NUT

1шт.

69

KHN24000

SPRING

1шт.

70

KHN24020

BELLCRANK

1шт.

71

KHN2249

BUSHING

4шт.

72

KHN26200

SPRING

1шт.

73

KHN24120

SUPPORT

1шт.

74

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

75

KHN2270

LOCKING RING

1шт.

76

KHN13290

SPRING

1шт.

77

KHN13301

PLATE

1шт.

78

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

79

378J0080Z

RING

1шт.

80

KHN13310

BUSHING

1шт.

81

KHN13320

ROLLER

1шт.

82

150529A1

WASHER

2шт.

83

150409A1

WASHER

1шт.

84

378J0050Z

CIRCLIP

2шт.

85

KHN24140

SHEET METAL

1шт.

86

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

87

KHN24150

SHEET METAL

1шт.

88

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.

89

KHN24130

BRACKET, SUPPORTING

1шт.

90

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.

91

KHN13331

LEVER

1шт.

92

KHN2249

BUSHING

2шт.

93

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

94

KHN2270

LOCKING RING

1шт.

95

KHN13350

SPRING

1шт.

96

KHR14930

LIMIT SWITCH

1шт.

97

KHN17050

CLIP

3шт.

99

378J0050Z

CIRCLIP

1шт.

100

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

119

KHN26440

TRIM PANEL

1шт.

120

KHN16770

DECAL

1шт.

121

KHN23770

CASE

1шт.

123

KHN26450

COVER

1шт.

124

KHN12350

PADDING

1шт.

125

KHN26460

PADDING

1шт.

126

KHR2737

SELF-TAP SCREW

6шт.

128

KHN12370

LEVER

1шт.

129

KHN17080

HANDLE GRIP

1шт.

Include(s) 130 - 132

1шт.

130

KHN12380

GRIP

1шт.

131

KHN17090

BRACKET, SUPPORTING

1шт.

132

KHR2733

SELF-TAP SCREW

2шт.

137

KHN2132

BOLT,Hex Flg Hd, M6 x 16

18шт.

138

KHN17280

BOLT,Hex Skt Hd

2шт.

141

KHN17560

SEAL

1шт.
