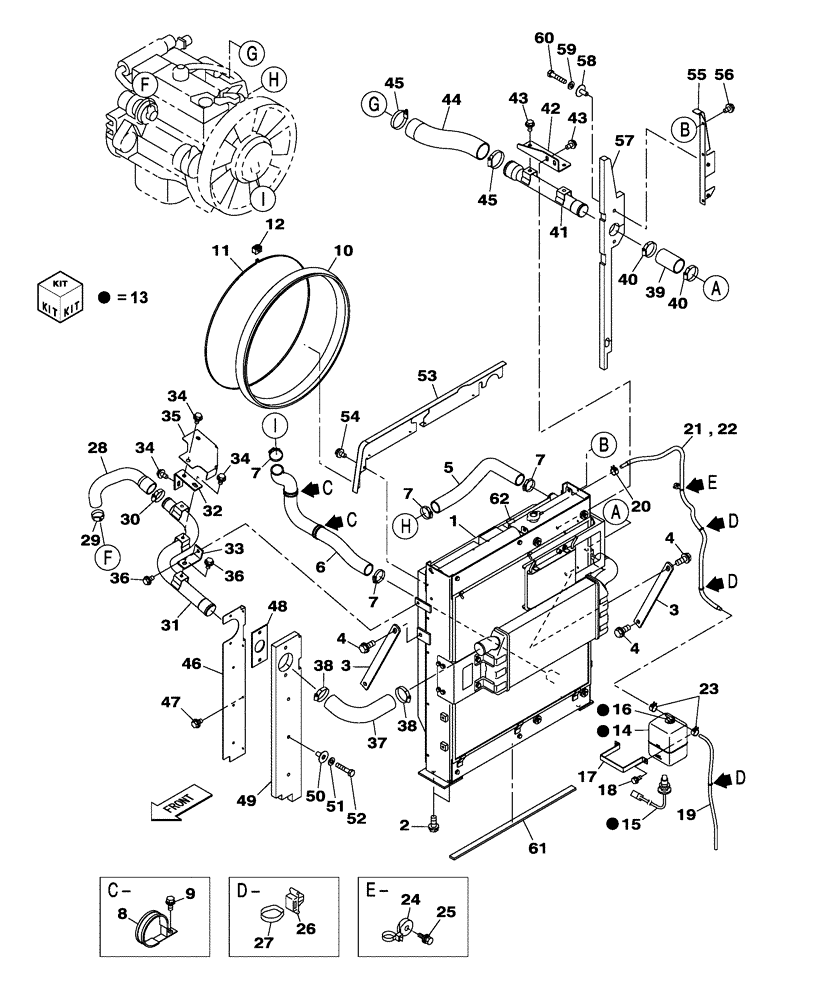

Запчасти Case CX250C (02-004[01]) - ENGINE WATER CIRCUIT - RADIATOR (02) - ENGINE

1

KBH12050

RADIATOR

1шт.

See Figure(s) 02-004-01 01

1шт.

2

166373A1

BOLT,Sems, M16 x 40mm

M16 x 40

4шт.

3

KRH13850

STAY

2шт.

4

166373A1

BOLT,Sems, M16 x 40mm

M16 x 40

4шт.

5

KBH11300

RADIATOR HOSE

1шт.

6

KRH13750

RADIATOR HOSE

1шт.

7

165793A1

COLLAR

4шт.

8

KRH10460

HOSE CLIP

2шт.

9

167320A1

BOLT,Spcl, M8 x 20mm

M8 x 20

2шт.

10

KRH12850

RUBBER SEAL

1шт.

11

KHH12390

MOUNTING CLIP

250 mm

1шт.

12

KHH12410

COLLAR CLAMP

1шт.

13

KHH10840

RESERVOIR, COOLANT E

1шт.

Include(s) 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

161740A1

SWITCH

1шт.

16

KHH10860

PLASTIC PLUG

1шт.

17

KRH1270

HOLDER

1шт.

18

166052A1

BOLT

2шт.

19

KHH0398

HOSE,7mm ID x 650mm L

650 mm

1шт.

20

165951A1

CLAMP

1шт.

21

161495A1

HOSE

1шт.

22

150402A1

TUBE,13 mm ID, 17.5 mm OD, 1300 mm Length

1300 mm

1шт.

23

165951A1

CLAMP

2шт.

24

KHR2584

CLAMP

1шт.

25

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

26

KHR10220

MOUNTING CLIP

3шт.

27

150496A1

MOUNTING CLIP

250 mm

3шт.

28

KRH13760

LARGE HOSE

HOSE,LARGE

1шт.

29

164966A1

HOSE CLAMP

1шт.

30

164967A1

COLLAR

1шт.

31

KRH13770

PIPE

1шт.

32

KRH13790

BRACKET, SUPPORTING

1шт.

33

KRH13800

BRACKET, SUPPORTING

1шт.

34

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

35

KRH13780

COVER

1шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

37

KRH12190

AIR HOSE

1шт.

38

164967A1

COLLAR

2шт.

39

KRH13810

LARGE HOSE

HOSE,LARGE

1шт.

40

164967A1

COLLAR

2шт.

41

KRH10320

SUCTION PIPE

1шт.

42

KRH13830

BRACKET, SUPPORTING

1шт.

43

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

44

KRH13840

LARGE HOSE

HOSE,LARGE

1шт.

45

KHH0411

COLLAR

2шт.

46

KRH13860

BRACKET, SUPPORTING

1шт.

47

166345A1

BOLT

M8 x 16

4шт.

48

KBH0929

RUBBER

1шт.

49

KRH13880

SEAL

1шт.

50

KHH0358

RETAINER

5шт.

51

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

52

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

5шт.

53

KBH12070

BRACKET, SUPPORTING

1шт.

54

166345A1

BOLT

M8 x 16

5шт.

55

KBH11450

BRACKET, SUPPORTING

1шт.

56

166345A1

BOLT

M8 x 16

3шт.

57

KBH11460

SEAL PROTECTION

1шт.

58

KHH0358

RETAINER

2шт.

59

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

60

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

61

KRH15160

SEAL PROTECTION

1шт.

62

162468A1

DECAL

1шт.
