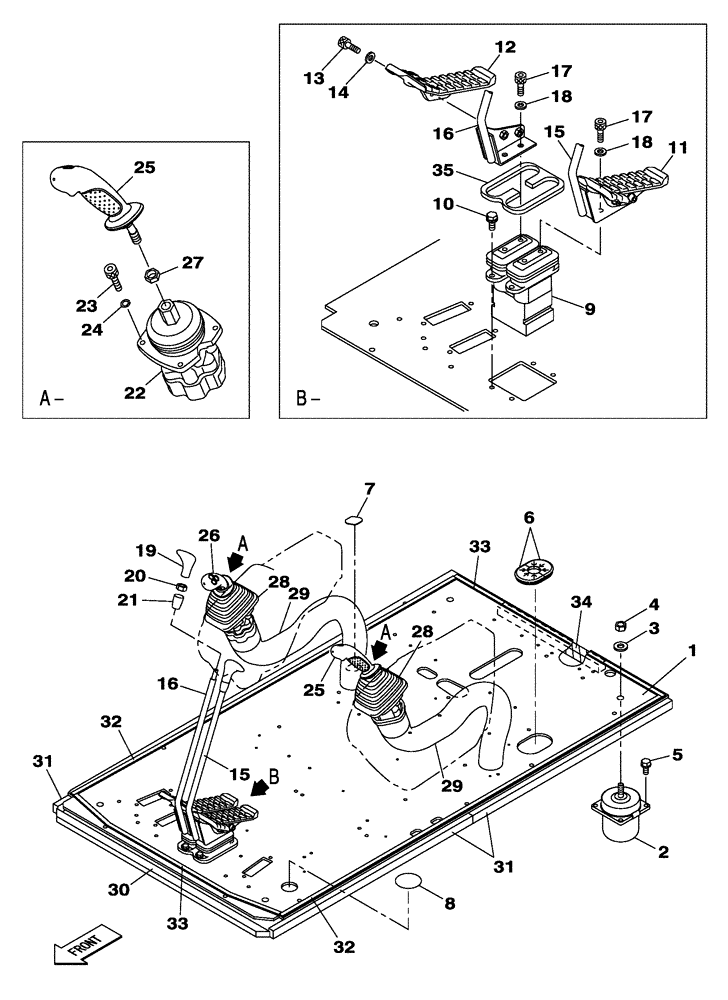

Запчасти Case CX250C (09-009[00]) - OPERATORS COMPARTMENT - LEVER, CONTROL (09) - CHASSIS/ATTACHMENTS

1

KHJ22241

FLOOR

1шт.

2

KHJ24370

SILENTBLOC

4шт.

3

150714A1

WASHER

4шт.

4

150760A1

NUT

4шт.

5

KHN3009

BOLT,Spcl

16шт.

6

KHJ24620

GROMMET

2шт.

7

KHJ24650

GROMMET

1шт.

8

KHJ14570

GROMMET

1шт.

9

KHJ19270

CONTROL BLOCK

1шт.

See Figure(s) 08-270-00 01

1шт.

10

166052A1

BOLT

M10 x 25

4шт.

11

KHJ13840

PEDAL

L

1шт.

12

KHJ13830

PEDAL

R

1шт.

13

KHJ1820

BOLT,Hex Skt Hd

M10 x 25

4шт.

14

150604A1

WASHER

4шт.

15

KHJ14430

CONTROL LEVER

1шт.

16

KHJ14440

CONTROL LEVER

1шт.

17

165404A1

BOLT,Hex Skt, M10 x 20mm

M10 x 20

4шт.

18

150604A1

WASHER

4шт.

19

KHJ2896

HANDLE

2шт.

20

150373A1

NUT

2шт.

21

KHJ2897

SPACER

2шт.

22

KHJ13290

CONTROL BLOCK

2шт.

See Figure(s) 08-272-00 01

1шт.

23

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

6шт.

24

892-11006

LOCK WASHER,M6

6шт.

25

KHJ24630

JOYSTICK

Left (to be used with KHJ24640)

1шт.

25

KHJ29080

KNOB

Left (to be used with KHJ28550)

1шт.

25

KHJ28540

JOYSTICK

Left (to be used with KHJ29090 and KHJ28550 if we have Prop on the right)

1шт.

26

KHJ24640

JOYSTICK

Right (No option circuit)

1шт.

26

KHJ28550

JOYSTICK

Right (with Propo switch)

1шт.

26

KHJ29090

KNOB

Right (if has left joystick has prop control for Low Flow)

1шт.

27

151154A1

JAM NUT

M14

2шт.

28

KHN16760

BELLOWS

2шт.

29

KHJ14470

HOSE PROTECTION

2шт.

30

KHJ10640

SEAL

1шт.

31

KHJ22370

SEAL

3шт.

32

KHJ13580

SEAL

2шт.

33

KHJ23700

SEAL

2шт.

34

KLN0257

SEAL

1шт.

35

KHJ13910

SEAL

1шт.
