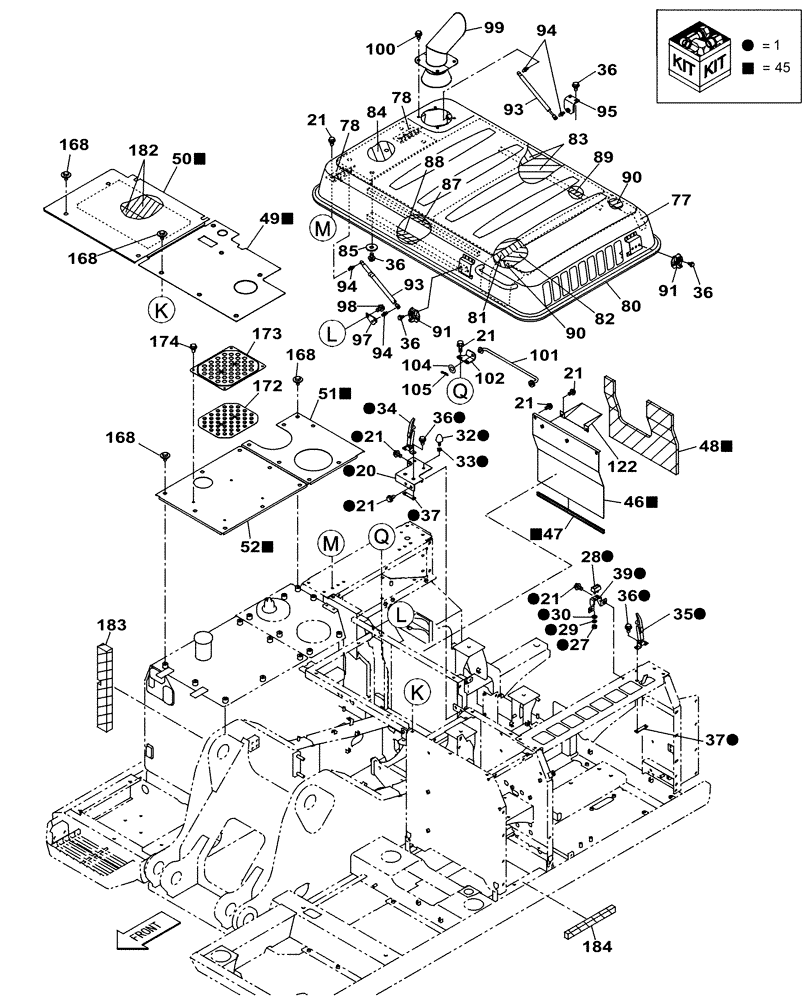

Запчасти Case CX250C (09-007A[00]) - COWLING - ENGINE COVER - FROM S/N NCSAM1254 (09) - CHASSIS/ATTACHMENTS

1

NS

NOT SERVICED

Assy, Incl 20 - 21, 27 - 30, 32 - 37, 39

1шт.

20

KRN23220

BRACKET

1шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

44шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

10шт.

28

KRN2098

STOP

4шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

30

892-11010

LOCK WASHER,M10

8шт.

32

151108A1

STOP

1шт.

33

KBH0446

NUT

1шт.

34

152423A1

LATCH

1шт.

35

150790A1

LATCH

1шт.

36

166350A1

BOLT

15шт.

37

KHN24200

PLATE

2шт.

39

KHN27660

BRACKET, SUPPORTING

1шт.

45

NS

NOT SERVICED

Assy, Incl 46 - 52

1шт.

46

KRN23260

COVER

1шт.

47

KAN3325

FOAM INSULATION

1шт.

48

KRN20390

INSULATION

1шт.

49

KBN15090G1

COVER

1шт.

50

KRN23250G1

COVER

1шт.

51

KRN23260

COVER

1шт.

52

KRN12690

COVER

1шт.

77

KBN15040G1

ENGINE HOOD

1шт.

78

KHN27590

HINGE

2шт.

80

KHN14830

INSULATING PANEL

1шт.

81

KBN14770

SEAL PROTECTION

1шт.

82

KRN22530

INSULATION

1шт.

83

KRN22520

INSULATION

2шт.

84

KRN22510

INSULATION

1шт.

85

163356A1

WASHER

5шт.

87

KRN23190

INSULATION

1шт.

88

KRN23180

INSULATION

1шт.

89

KBN15020

INSULATION

1шт.

90

KBN15000

INSULATION

2шт.

91

150785A1

STOP LOCK

2шт.

93

KHN29240

GAS STRUT

2шт.

94

KHN24170

BALL

4шт.

95

KBN13290

BRACKET, SUPPORTING

1шт.

97

KBN13320

BRACKET, SUPPORTING

1шт.

98

166052A1

BOLT

2шт.

99

KBN14141

PIPE FITTING

1шт.

100

166351A1

BOLT,Sems, M10 x 20mm

4шт.

101

KBN15050

STAY

1шт.

102

KBN15690

BRACKET

1шт.

104

157548A1

WASHER

1шт.

105

KHN2373

PIN, SPLIT (COTTER)

1шт.

122

KRN20290

COVER

1шт.

168

KHN12020

BOLT,Spcl

26шт.

172

KHN10940

RUBBER PAD

2шт.

173

KHN13510

COVER

2шт.

174

KHN13540

BOLT,Spcl

8шт.

182

KRN22480

INSULATION

2шт.

183

KRN22570

SEAL PROTECTION

1шт.

184

KMN1909

SEAL

1шт.
