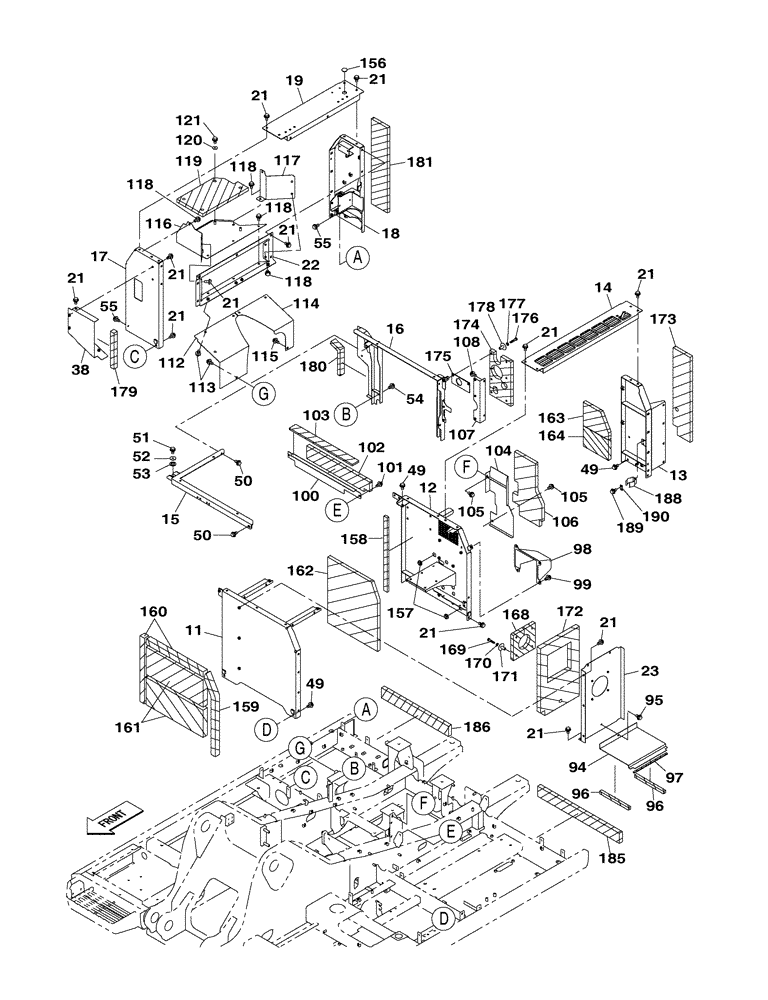

Запчасти Case CX250C (09-005[00]) - COWLING (09) - CHASSIS/ATTACHMENTS

11

KRN22360

SUPPORT ASSY.

1шт.

12

KRN22150

SUPPORT ASSY.

1шт.

13

KBN14240

SUPPORT ASSY.

1шт.

14

KRN22160

SUPPORT ASSY.

1шт.

15

KRN20130

SUPPORT ASSY.

1шт.

16

KRN22740

SUPPORT ASSY.

1шт.

17

KRN22090

SUPPORT ASSY.

1шт.

18

KBN14250

SUPPORT ASSY.

1шт.

19

KRN22100G1

FRAME

1шт.

21

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

35шт.

22

KRN22290

PADDING

1шт.

23

KRN20220

COVER

1шт.

38

KRN22120

COVER

1шт.

49

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

50

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

51

166352A1

BOLT

M12 x 30

1шт.

52

162409A1

WASHER

1шт.

53

KHN2061

WASHER

1шт.

54

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

55

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

94

KRN20230

COVER

1шт.

95

166350A1

BOLT

M8 x 20

1шт.

96

KRN20340

SEAL

2шт.

97

KRN14540

SEAL

1шт.

98

KRN14741

COVER

1шт.

99

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

100

KRN20150

COVER

1шт.

101

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

102

KRN10780

SEAL

1шт.

103

KRN10790

NOISE PROTECTION

1шт.

104

KRN20170

COVER

1шт.

105

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

106

KRN20420

SEAL

1шт.

107

KRN22710

COVER

1шт.

108

166345A1

BOLT

M8 x 16

2шт.

112

KRN22210

COVER

1шт.

113

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

114

KRN22220

COVER

1шт.

115

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

116

KRN22270

COVER

1шт.

117

KRN22280

COVER

1шт.

118

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

10шт.

119

KRN22460

INSULATION

1шт.

120

163356A1

WASHER

4шт.

121

166350A1

BOLT

M8 x 20

4шт.

156

KBJ0525

GROMMET

1шт.

157

150520A1

GROMMET

2шт.

158

KRN20350

SEAL PROTECTION

1шт.

159

KRN20360

NOISE PROTECTION

1шт.

160

KRN22560

NOISE PROTECTION

2шт.

161

KRN22400

NOISE PROTECTION

2шт.

162

KRN22410

NOISE PROTECTION

1шт.

163

KRN22440

NOISE PROTECTION

1шт.

164

KRN22450

NOISE PROTECTION

1шт.

168

KRN20320

SEAL PROTECTION

1шт.

169

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

170

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

171

KHH0358

RETAINER

4шт.

172

KRN20330

INSULATION

1шт.

173

KRN13360

SEAL

1шт.

174

KRN22720

NOISE PROTECTION

1шт.

175

KRN20280

INSULATING PLATE

1шт.

176

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

6шт.

177

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

178

KHH0358

RETAINER

6шт.

179

KRN2955

SEAL

1шт.

180

KRN12760

SEAL

1шт.

181

KBN13330

NOISE PROTECTION

1шт.

185

KRN14150

SEAL

1шт.

186

KRN14160

NOISE PROTECTION

1шт.

188

152772A1

HOLDER

1шт.

189

166350A1

BOLT

2шт.

190

KHN3548

PLATE

1шт.
