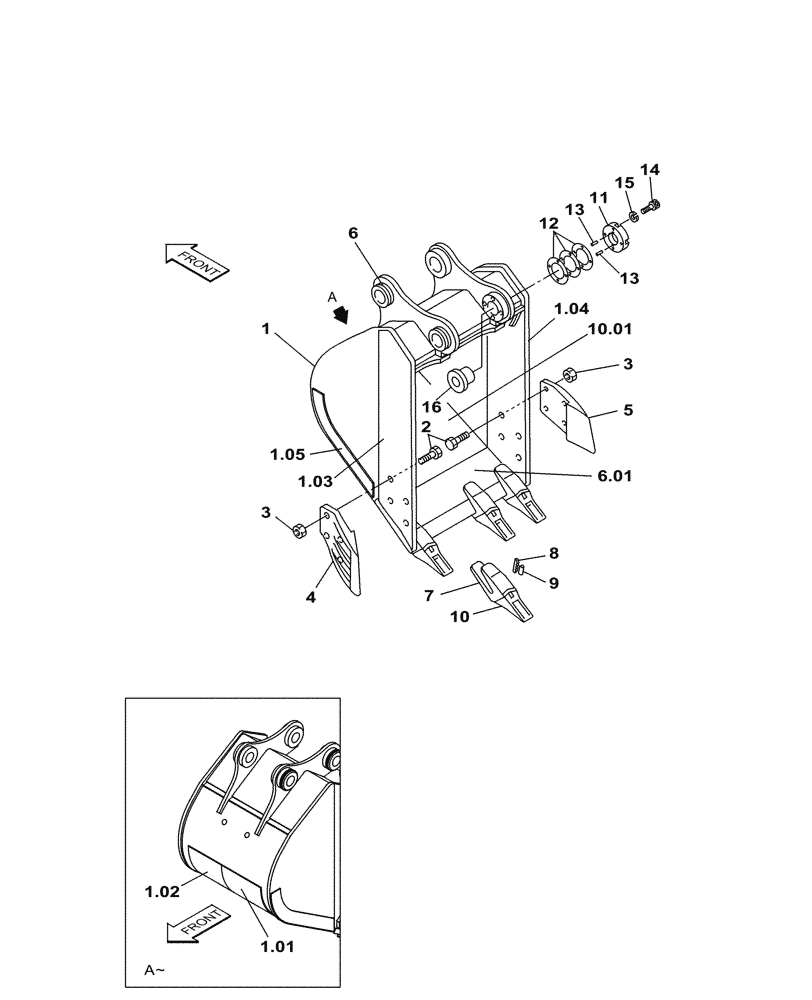

Запчасти Case CX250C (09.310.00[01]) - VAR - 481255 - BUCKET (1,0M³ X 1276MM) (09) - BOOMS

1

KBV33220

BUCKET

Bucket, 0.8M3x1086mm, ASSY, Incl 1.01 - 16

1шт.

1.01

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

1.02

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

1.03

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

1.04

NSS

NOT SOLD SEPARAT

Lip Bucket, Incl in 1

1шт.

1.05

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

2

626-24065

IDLER,Hex, M24 x 65mm, Cl 10.9, Full Thd

8шт.

3

829-1324

NUT

8шт.

4

KRV1169

CUTTING EDGE

1шт.

5

KRV1168

CUTTING EDGE

1шт.

6

NSS

NOT SOLD SEPARAT

Collar, Incl in 1

2шт.

6.01

KBV19210

Lip Bucket

1шт.

7

KBV0433

SHANK

Standard

5шт.

7

KBV22690

ADAPTER

Alternative Part

5шт.

Same Usage/Applicability. To be ordered when P/N KBV0433 is not Available

1шт.

8

BLT0188

KEY

Standard

5шт.

8

KHV11820

PIN

Alternative Part

5шт.

Same Usage/Applicability. To be ordered when P/N BLT0188 is not Available

1шт.

9

BLT0189

PIN

Standard

5шт.

9

KHV11840

RUBBER BLOCK

Alternative Part

5шт.

Same Usage/Applicability. To be ordered when P/N BLT0189 is not Available

1шт.

10

KBV0147

TOOTH

Standard

5шт.

10

KBV22700

BUCKET TOOTH POINT

Alternative Part

5шт.

Same Usage/Applicability. To be ordered when P/N KBV0147 is not Available

1шт.

10.01

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

11

KBV0924

PLATE

1шт.

12

166002A1

SHIM

6шт.

13

837-12032

DOWEL,M12 x 32

2шт.

14

863-16040

HEX SOC SCREW,M16 x 40mm, Cl 12.9

4шт.

15

184-016VR

SPRING WASHER

4шт.

16

KBV1370

BUSHING

1шт.
