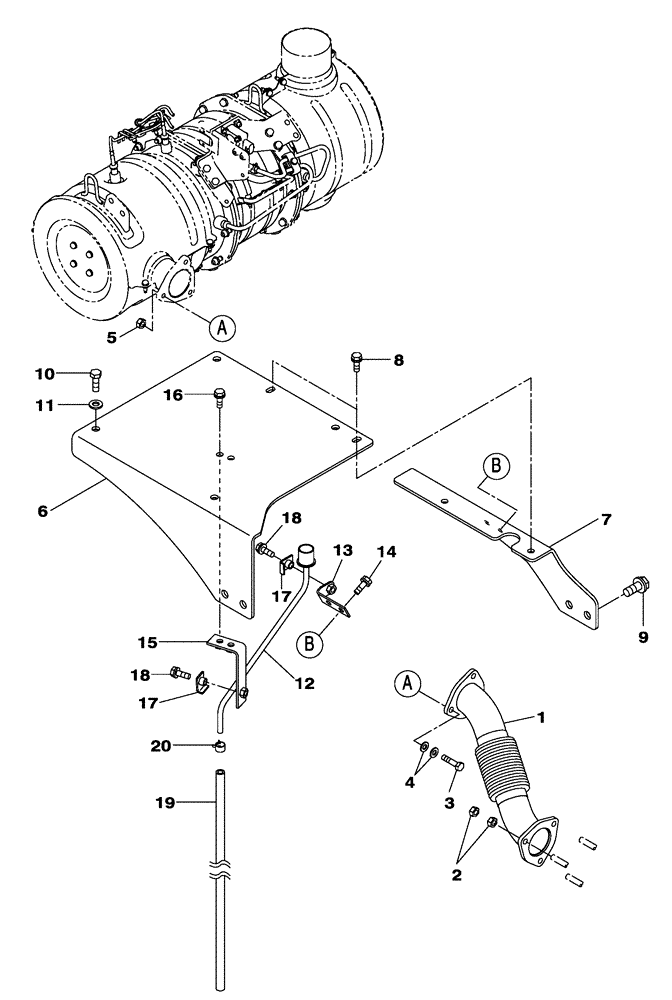

Запчасти Case CX250C (02-003[01]) - EXHAUST (02) - ENGINE

1

KRH13910

EXHAUST SYSTEM PIPE

1шт.

2

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

3

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

3шт.

4

153081A1

WASHER

6шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

6

KRH15100

BRACKET, SUPPORTING

1шт.

7

KRH15110

BRACKET, SUPPORTING

1шт.

8

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

2шт.

9

166373A1

BOLT,Sems, M16 x 40mm

M16 x 40

4шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

11

150811A1

WASHER

4шт.

12

KRH15120

EXHAUST SYSTEM PIPE

1шт.

13

KRH15130

BRACKET, SUPPORTING

1шт.

14

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

2шт.

15

KRH15140

BRACKET, SUPPORTING

1шт.

16

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

2шт.

17

KLH11320

CLAMP

2шт.

18

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

2шт.

19

KHH14110

HOSE

750 mm

1шт.

20

KHH0405

MOUNTING CLIP

1шт.
