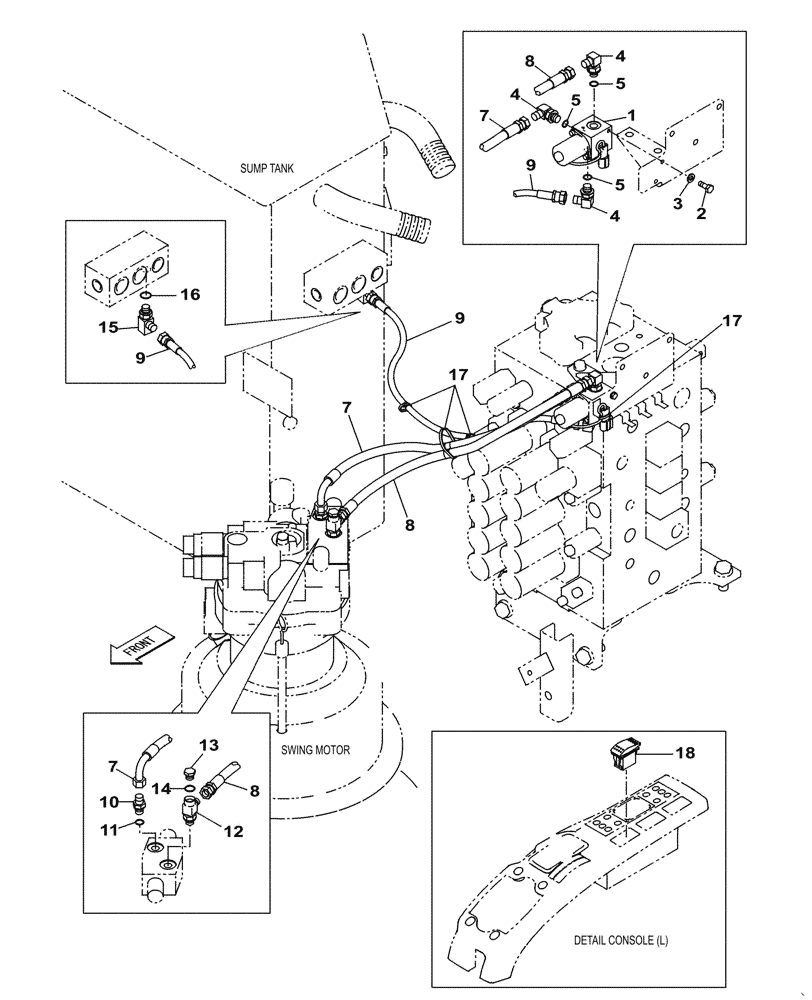

Запчасти Case CX250C (08-078[01]) - FREE SWING, LINE (08) - HYDRAULICS

1

159205A1

VALVE

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

3

183-106VR

SPRING WASHER

2шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

3шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

7

KRJ6453

HYDRAULIC HOSE,6.30 mm ID x 520.00 mm

1шт.

8

KRJ11860

HOSE ASSY.

1шт.

9

KHJ2048

HOSE,6.3mm ID x 750mm L

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

11

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KHJ11640

ORIFICE

1шт.

13

159002A1

PLUG

1шт.

14

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

KHJ2773

TEE

1шт.

16

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

150496A1

MOUNTING CLIP

4шт.

18

KHR16140

TOGGLE SWITCH

1шт.
