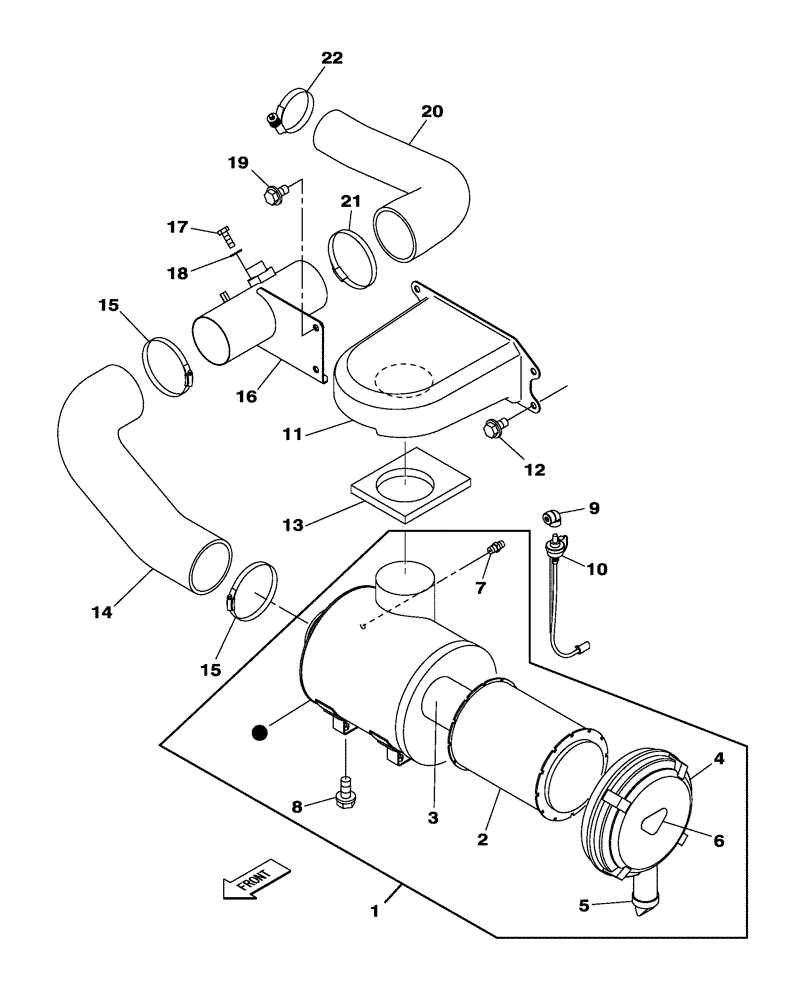

Запчасти Case CX250C (02-002[00]) - AIR FILTRATION (02) - ENGINE

1

KRH13530

AIR CLEANER

1шт.

Include(s) 2 - 7

1шт.

2

KBH0921

AIR FILTER

1шт.

3

KBH0922

AIR FILTER

1шт.

4

KBH0923

COVER ASSY

1шт.

5

KBH0924

VALVE

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

KSH0935

FITTING

1шт.

8

166052A1

BOLT

4шт.

9

KHH13870

ELBOW UNION

Union Elbow

1шт.

10

KHH10330

SENSOR

1шт.

11

KRH13580

DUCT

1шт.

12

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

13

KRH13590

SEAL

1шт.

14

KRH13600

LARGE HOSE

HOSE,LARGE

1шт.

15

150545A1

COLLAR

2шт.

16

KRH13610

BRACKET, SUPPORTING

1шт.

17

KHH14100

BOLT

2шт.

18

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

19

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

20

KRH13620

LARGE HOSE

HOSE,LARGE

1шт.

21

150545A1

COLLAR

1шт.

22

KHH13210

CLAMP

1шт.
