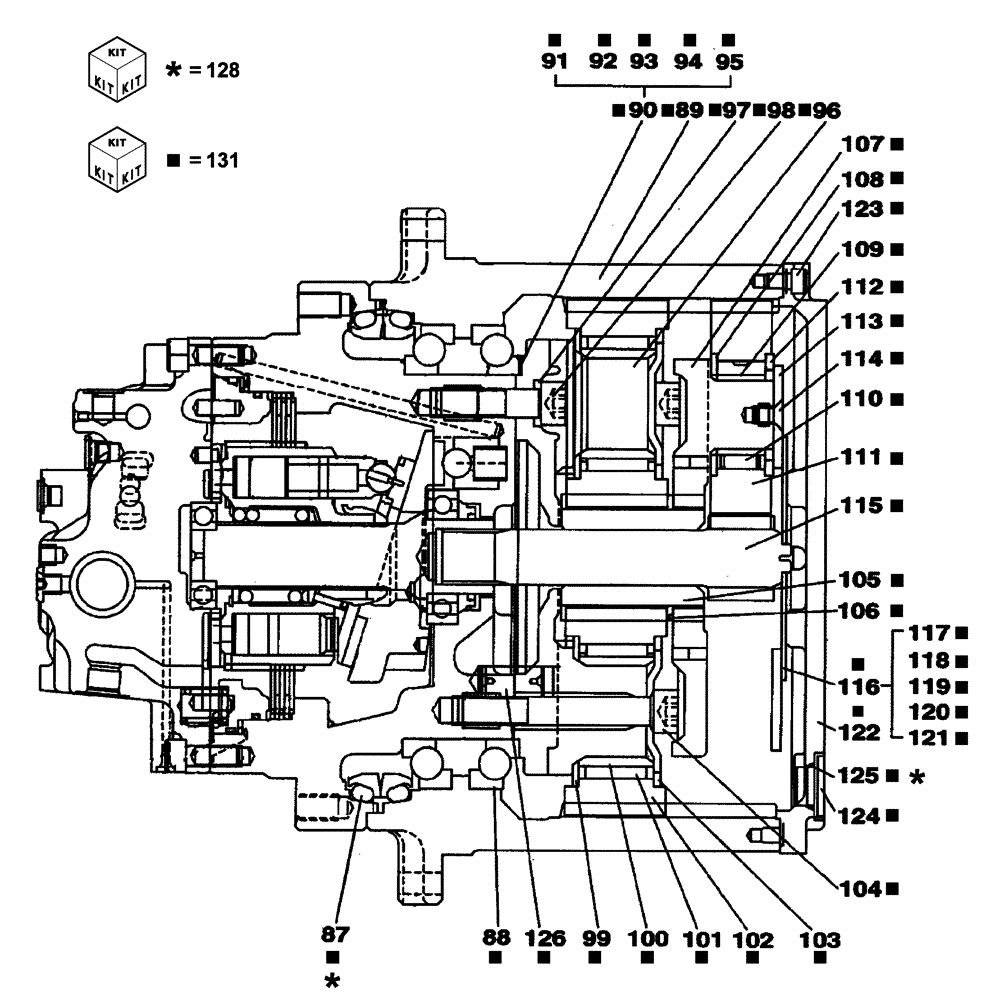

Запчасти Case CX250C (08-054[00]) - TRAVEL REDUCTION GEAR (08) - HYDRAULICS

KBA13690

HYDRAULIC MOTOR

Assy

1шт.

87

LZ010600

REPAIR KIT

1шт.

88

LB00548

BEARING

2шт.

89

NSS

NOT SOLD SEPARAT

Housing

1шт.

90

LH00254

SHIM KIT

1шт.

Include(s) 91 - 95

1шт.

91

NSS

NOT SOLD SEPARAT

Shim, 0.05 mm

1шт.

92

NSS

NOT SOLD SEPARAT

Shim, 0.1 mm

1шт.

93

NSS

NOT SOLD SEPARAT

Shim, 0.3 mm

1шт.

94

NSS

NOT SOLD SEPARAT

Shim, 0.5 mm

1шт.

95

NSS

NOT SOLD SEPARAT

Shim, 1.0 mm

1шт.

96

LS003340

SUPPORT

1шт.

97

LA00702

WASHER

8шт.

98

LA00703

BOLT

8шт.

99

LR00583

PLATE

4шт.

100

LB00549

RING RACE

4шт.

101

LB011790

NEEDLE BEARING

4шт.

102

LC00163

SUN GEAR

4шт.

103

LR015040

THRUST PLATE

4шт.

104

LA00704

BOLT

4шт.

105

LC002880

SUN GEAR

1шт.

106

LA00705

RING, SNAP

RING SNAP

1шт.

107

LS003350

SUPPORT

1шт.

108

LR00585

PLATE

3шт.

109

LB011800

BEARING

3шт.

110

LB011810

NEEDLE BEARING

3шт.

111

LC002890

IDLER PINION

3шт.

112

LR00586

PLATE

3шт.

113

LR015050

THRUST PLATE

1шт.

114

LV00029

SCREW

3шт.

115

LC002900

GEAR

1шт.

116

LR00588

DISC

1шт.

Include(s) 117 - 121

1шт.

117

NSS

NOT SOLD SEPARAT

Plate, Thrust; 3.6 mm

1шт.

118

NSS

NOT SOLD SEPARAT

Plate, Thrust; 2.3 mm

1шт.

119

NSS

NOT SOLD SEPARAT

Plate, Thrust; 2.8 mm

1шт.

120

NSS

NOT SOLD SEPARAT

Plate, Thrust; 3.0 mm

1шт.

121

NSS

NOT SOLD SEPARAT

Plate, Thrust; 3.2 mm

1шт.

122

LW006290

COVER

1шт.

Include(s) 123

1шт.

123

108R010Z020N

BOLT

M10 x 20

16шт.

124

165681A1

PLUG

3шт.

125

154503A1

O-RING

3шт.

126

160104A1

PIN

4шт.

128

LZ010600

REPAIR KIT

1шт.

Include(s) 87, 125

1шт.

131

LZ010670

REDUCER

1шт.

Include(s) 87 - 165 And See Figure(s) 07-011-00 01

1шт.

131

LZ010670R

REMAN-REDUCTION UNIT

CX250C CRAWLER EXCAVATOR TIER 4 (NA)

1шт.

131

LZ010670C

CORE-REDUCTION UNIT

Return Number

1шт.
